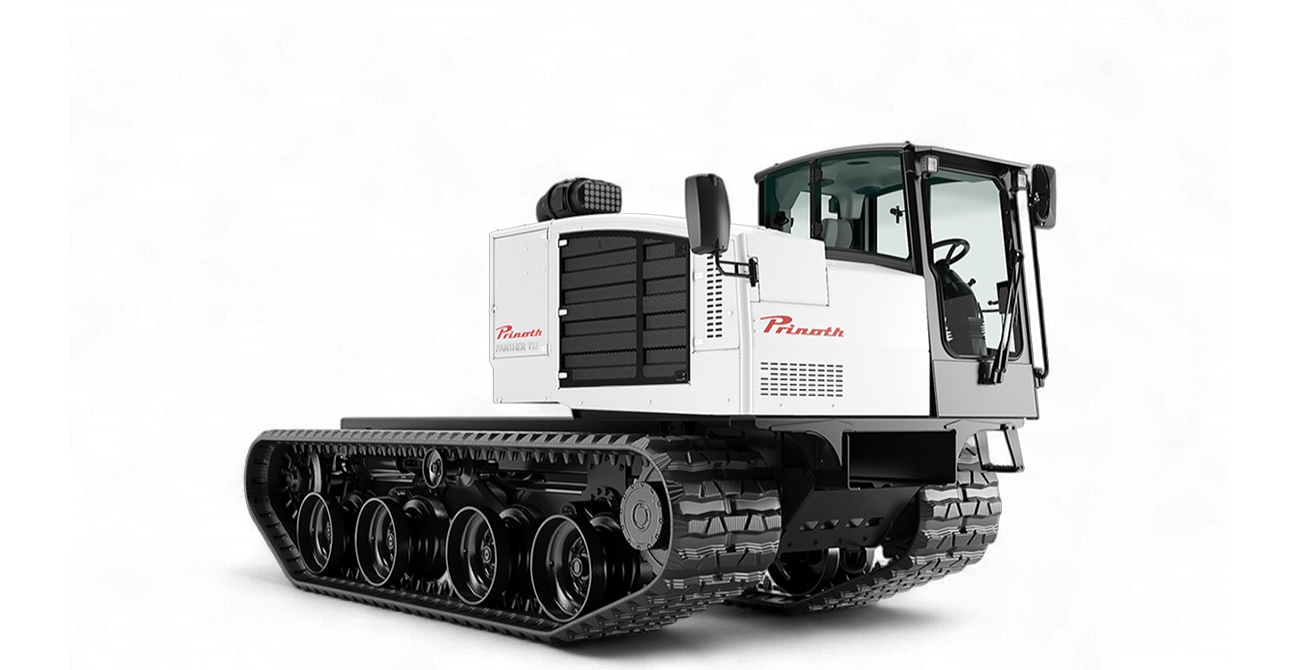

Panther T12

/ Products / Bare Chassis /

PANTHER T12

The medium size crawler with the most capacity.

GVWR

57,900 lb

26.263 kg

Power

250 HP

186 kW

Travel Speed

8.4 mph

13,5 km/h

Your Benefits

Bigger implements, smaller footprint

The Panther T12 can be mounted with heavier equipment than any other vehicle in its class. It has a capacity of up to 57,900 lb.

Made to be customized

Your Panther is designed to be customized into the right tool for your own challenges.

Rugged through and through

Panther crawler carriers are built with heavy-duty components and have a rugged design that can withstand harsh working conditions.

Proudly contributing to organic farming in the UK

Farmland is probably some of the most cherished soils there are. Understandably so as they help grow our fruits and vegetables. This UK farmer appreciated how this low ground pressure Panther T12 allowed him to harvest his crops without damaging the grounds for next year’s organic carrot harvest.

Features

Available to allow additional space for implements

Environmentally-conscious with the cleanest fleet in the industry, Prinoth offers two EPA Tier 4 Final/Euromot Stage V engine brands; CAT’s C7.1 Diesel engine or Cummins’ B6.7 Diesel Engine.

Crawler carriers use tracks instead of wheels to provide operators superior traction and stability. This feature is especially beneficial in difficult terrains like muddy or uneven surfaces, where dependable performance is crucial.

Our Panther tracks perform for all soil types in all weather conditions. One of the most important feature of our undercarriage, the automatic track tensioning system, means fewer greasing points and less daily maintenance before starting your day. Ultimately, it increases peace of mind.

Technical data

Download (PDF)

GVWR

57,900 lb

26.263 kg
Power

250 HP

186 kW
Travel Speed

8.4 mph

13,5 km/h
Payload

28,793 lb

13.060 kg
Ground pressure

3.50 psi (unloaded)

24,13 kPa (unloaded)
Maximum Gradeability Uphill/Downhill

60%

31,0°
Maximum Gradeability Side hill

40%

21,8°

Length

240.4 in

6.107 mm
Fording depth

51 in

1.300 mm
Weight

32,673 lb

14.820 kg
Shipping Width

101.2 in

2.570 mm
Height

114.9 in

2.918 mm
Standard Equipment

Air conditioning
ROPS ISO 3471

Air conditioning
ROPS ISO 3471
Optional Equipment

Fleet management system
Inclinometer built in displays with adjustable arms
FOPS ISO 3449

Fleet management system
Inclinometer built in displays with adjustable arms
FOPS ISO 3449
