PANTHER T9R
Simply the fastest in its class!
Payload
Heaped Capacity
Travel Speed

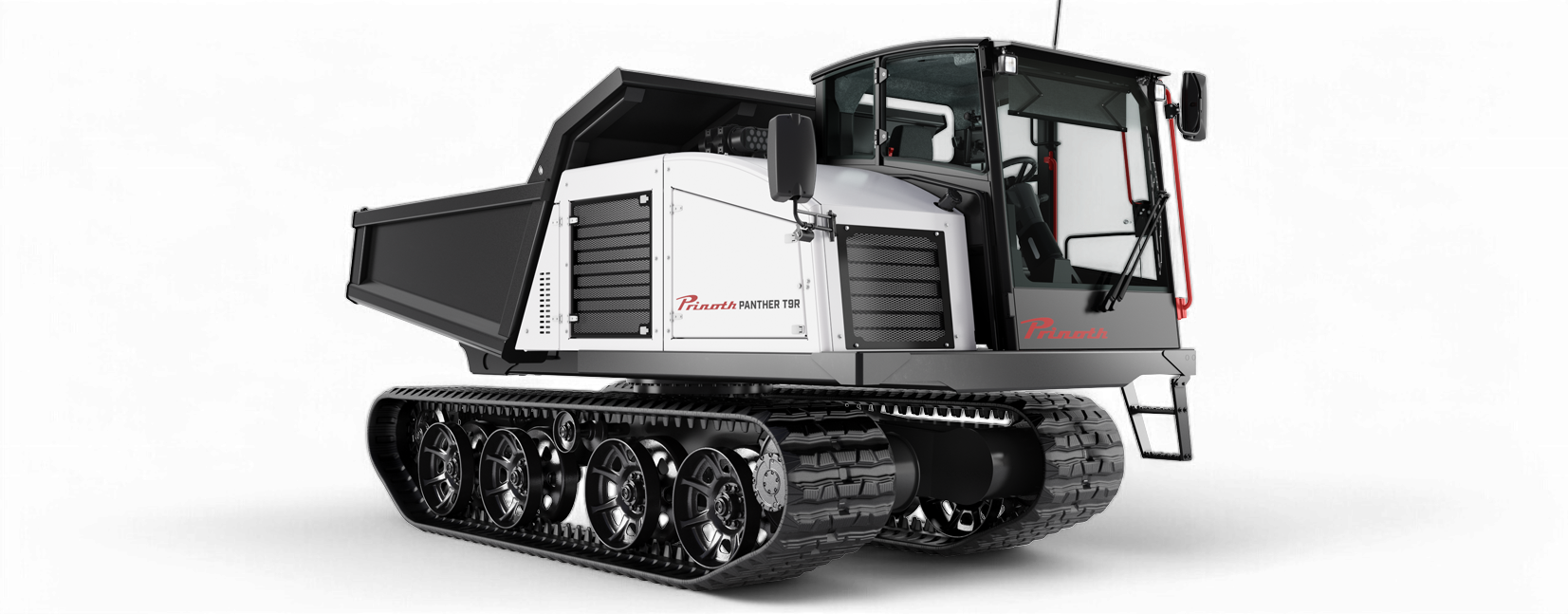

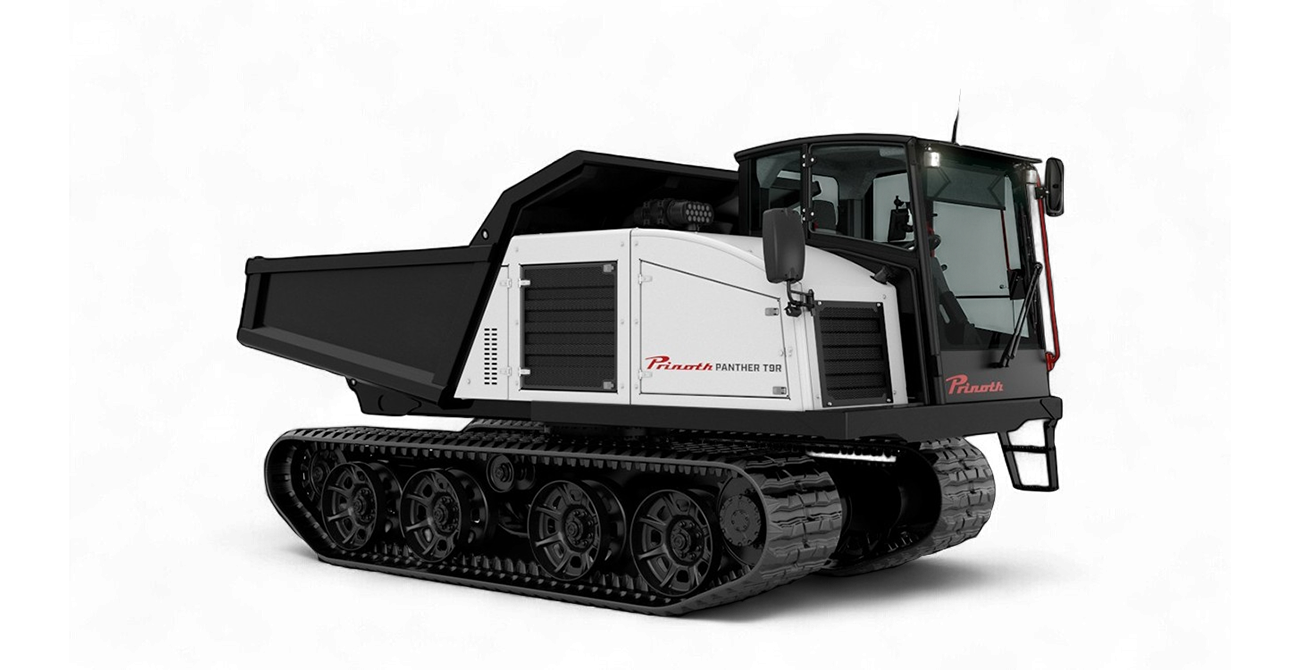

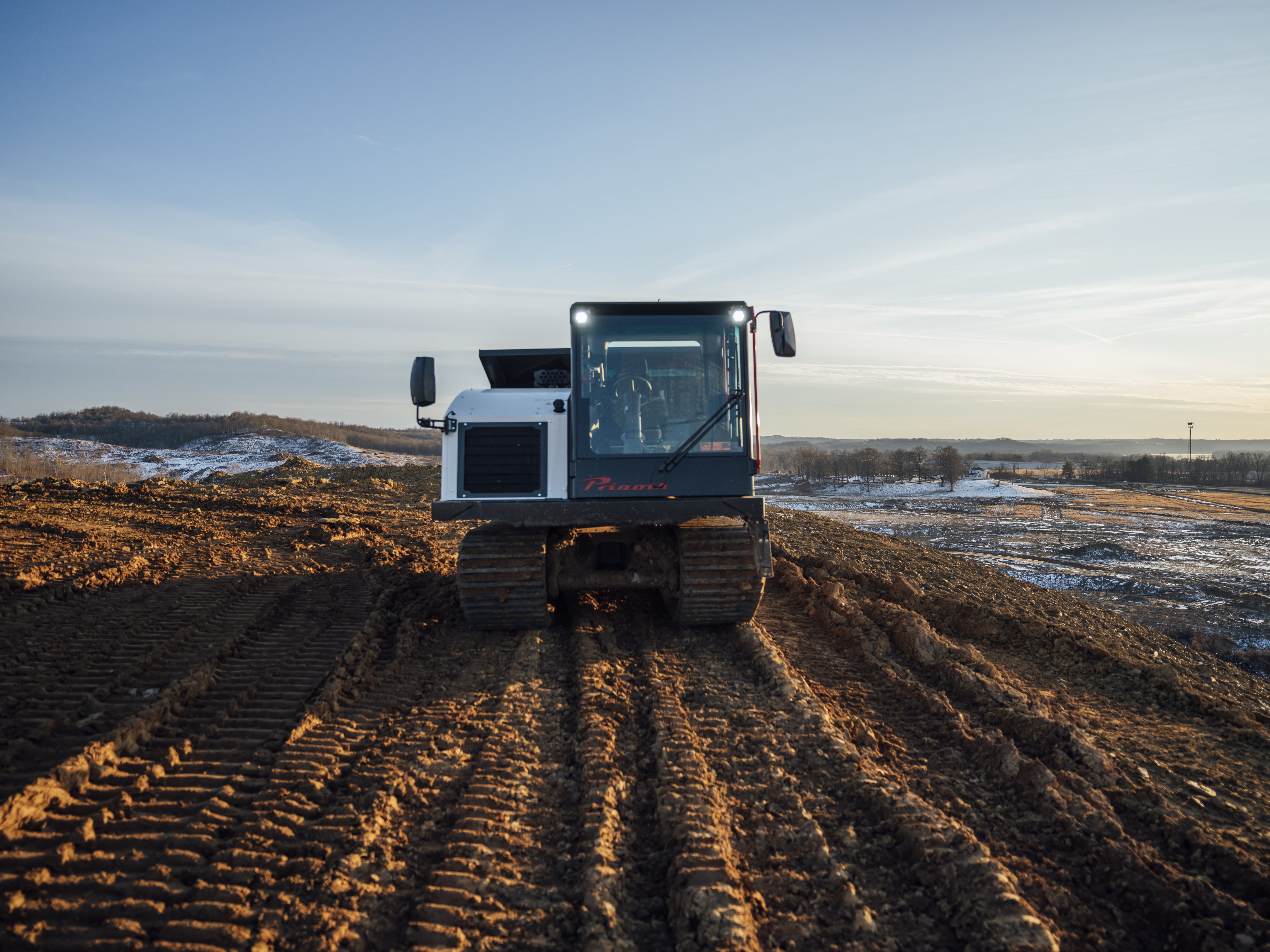

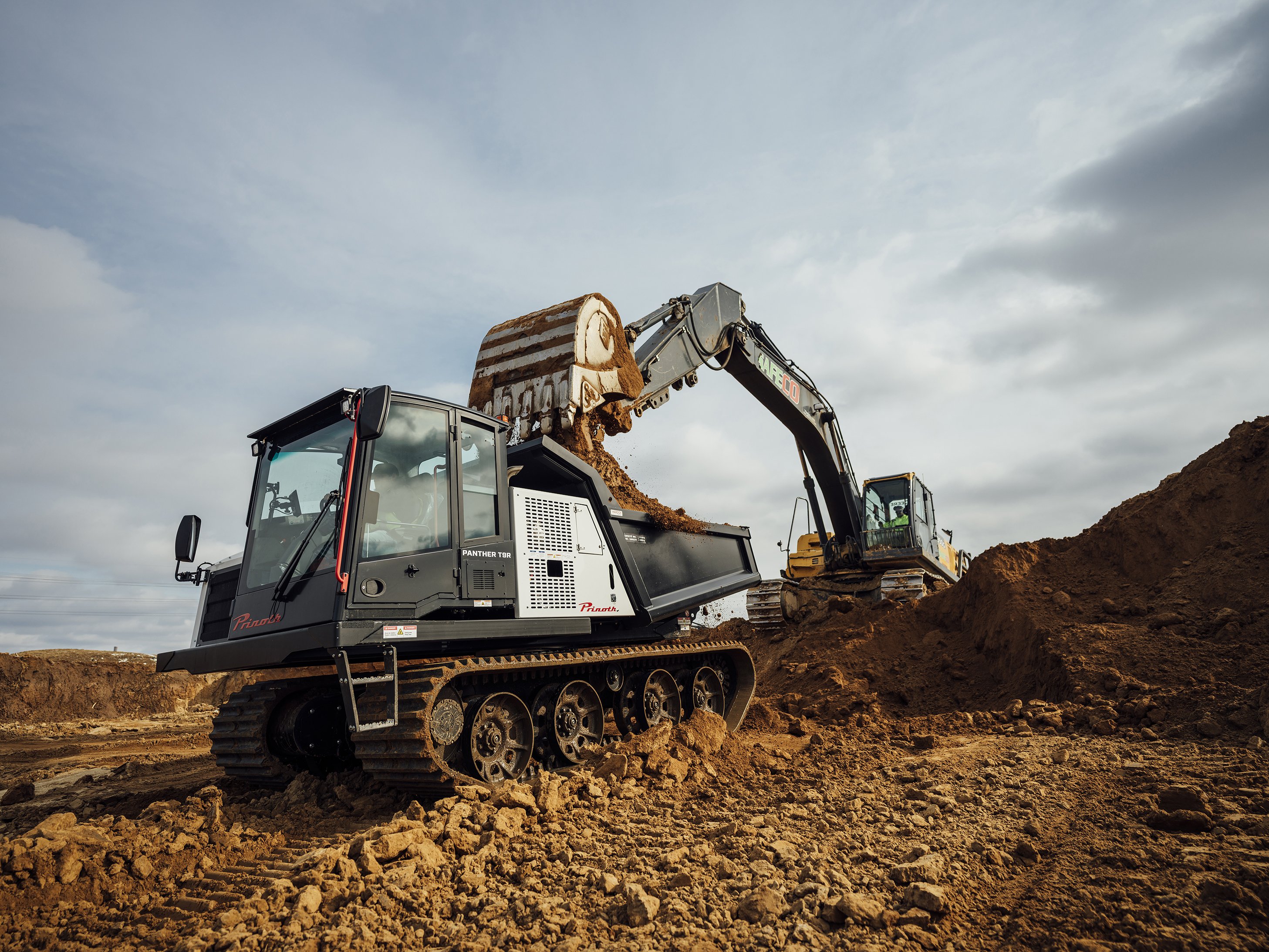

PANTHER T9R ROTATING DUMPER

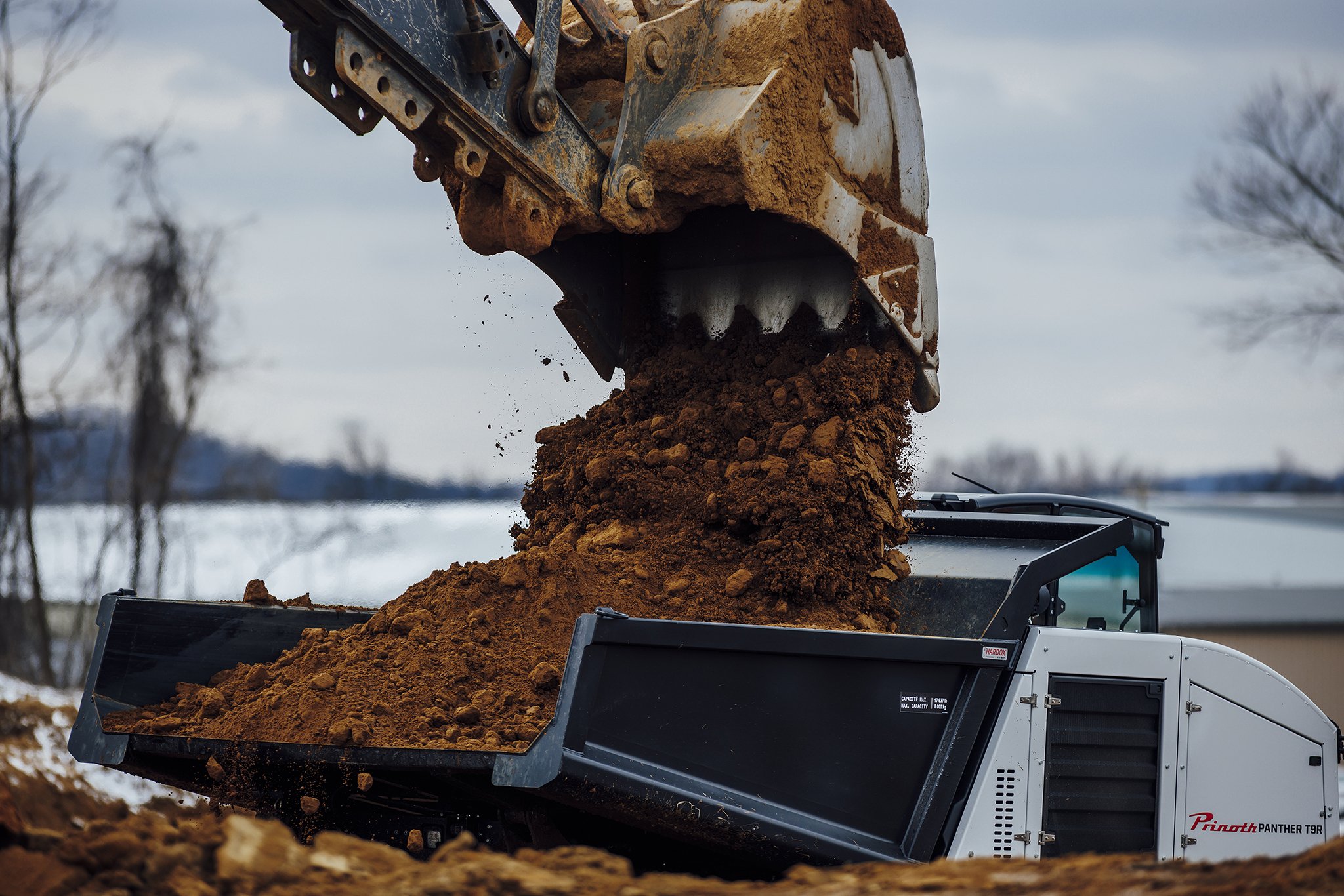

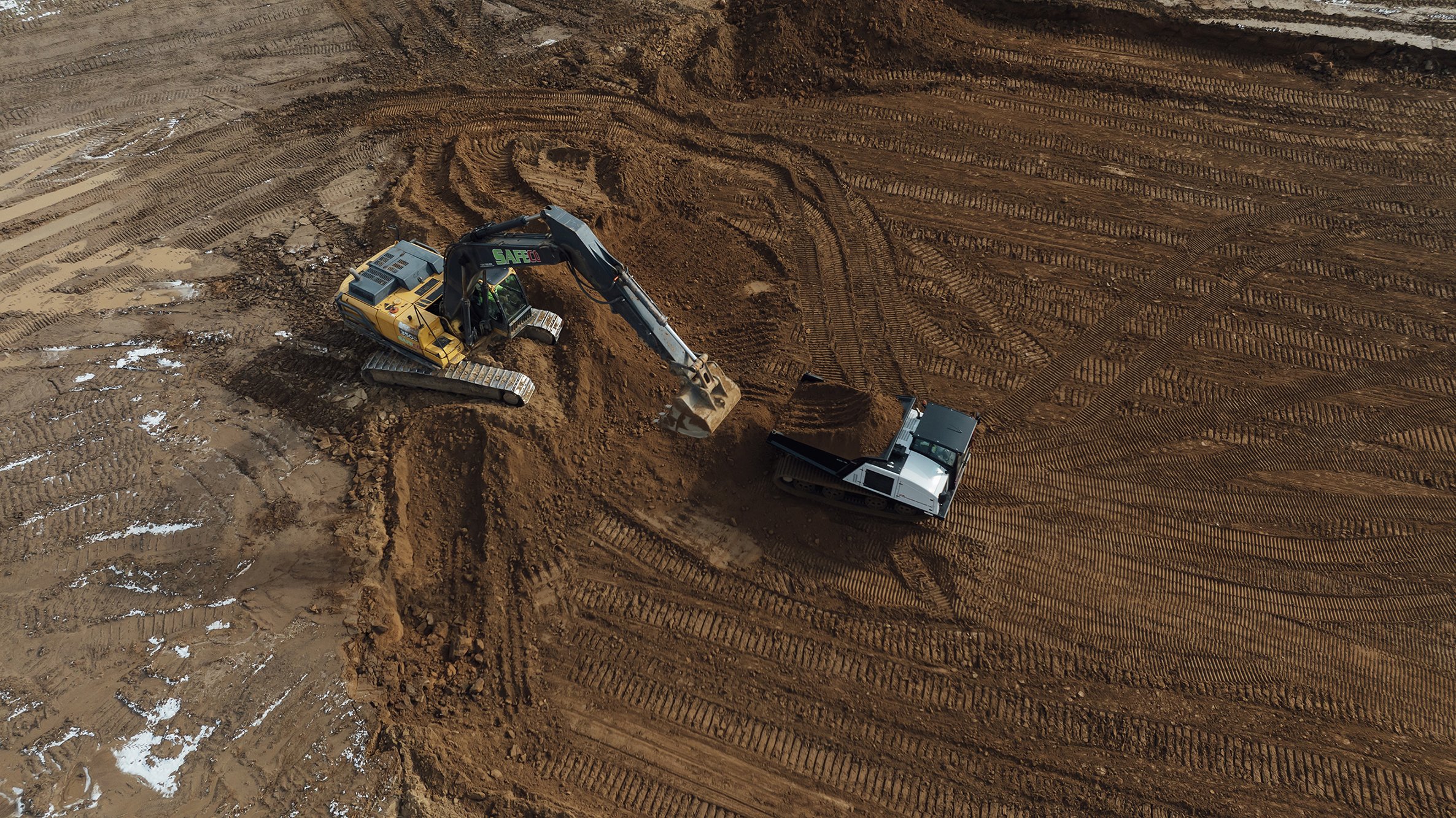

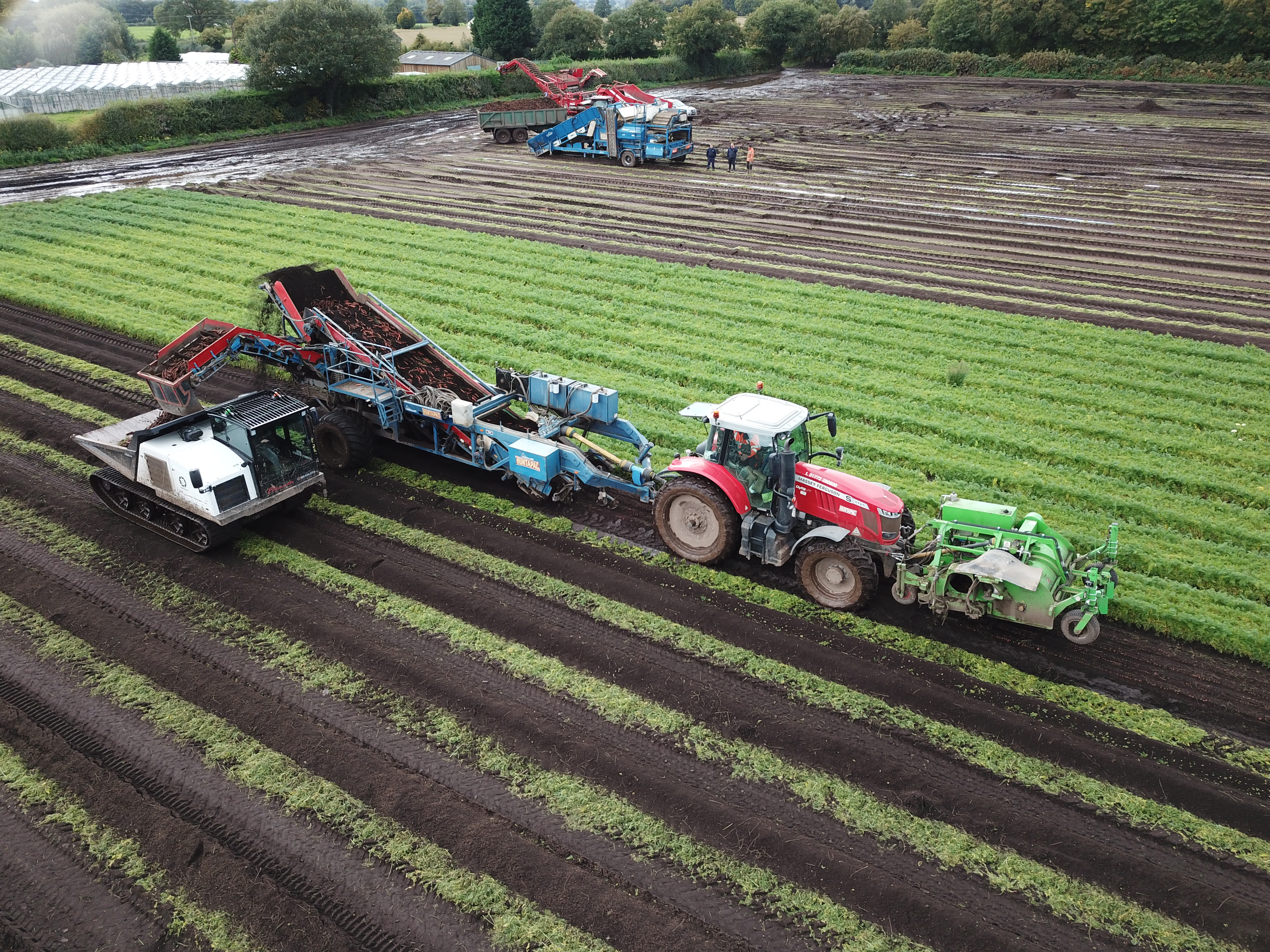

Protecting sensitive soil is the very nature of crawler carriers. From a carott harvesting farm in the UK to the hills of West Virginia, with its light footprint, and nimble size, the T9r is the perfect crawler to assist with vital jobs without damaging vulnerable environments.

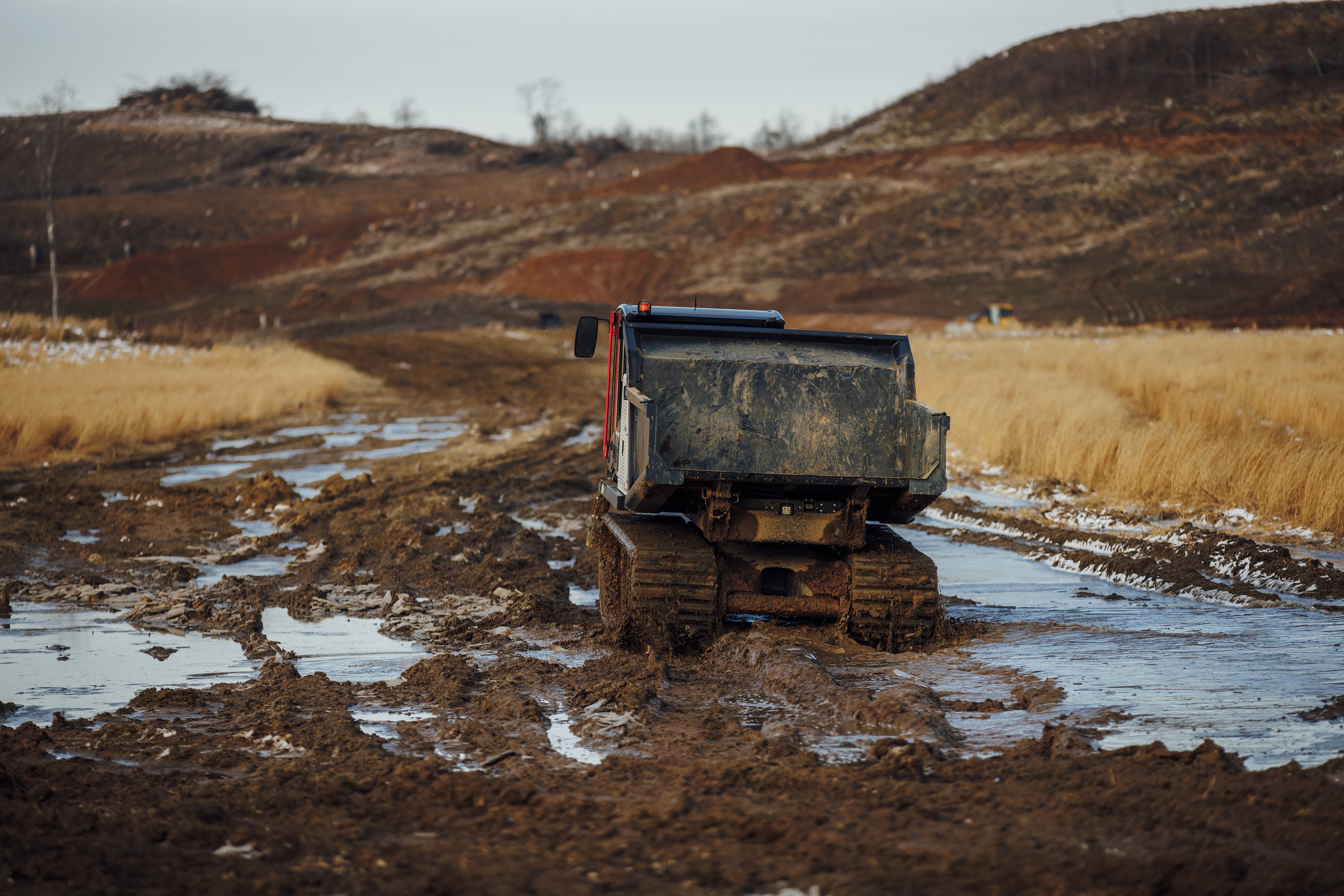

Engineered for agility and durability, the T9r offers top speed with 360° rotation, providing exceptional maneuverability and quick access across the toughest terrains where conventional vehicles struggle.
Engineered for agility and durability, the T9r offers top speed with 360° rotation, providing exceptional maneuverability and quick access across the toughest terrains where conventional vehicles struggle.
Configuration
Stay in control of your fleet. Track usage, status, and location from anywhere, spot issues before they cause downtime, and keep operations running smoothly even in remote areas.
Operate safely and confidently. Control your Panther vehicle remotely from a clear vantage point, ideal for temporary tasks in hazardous environments.
Features
With its design & engineering guided from the ground up by those who know our vehicles best; our customers, Prinoth designed the T9R with an overall speed that literally leaves the competition in its tracks and boasts a 31% performance advantage.

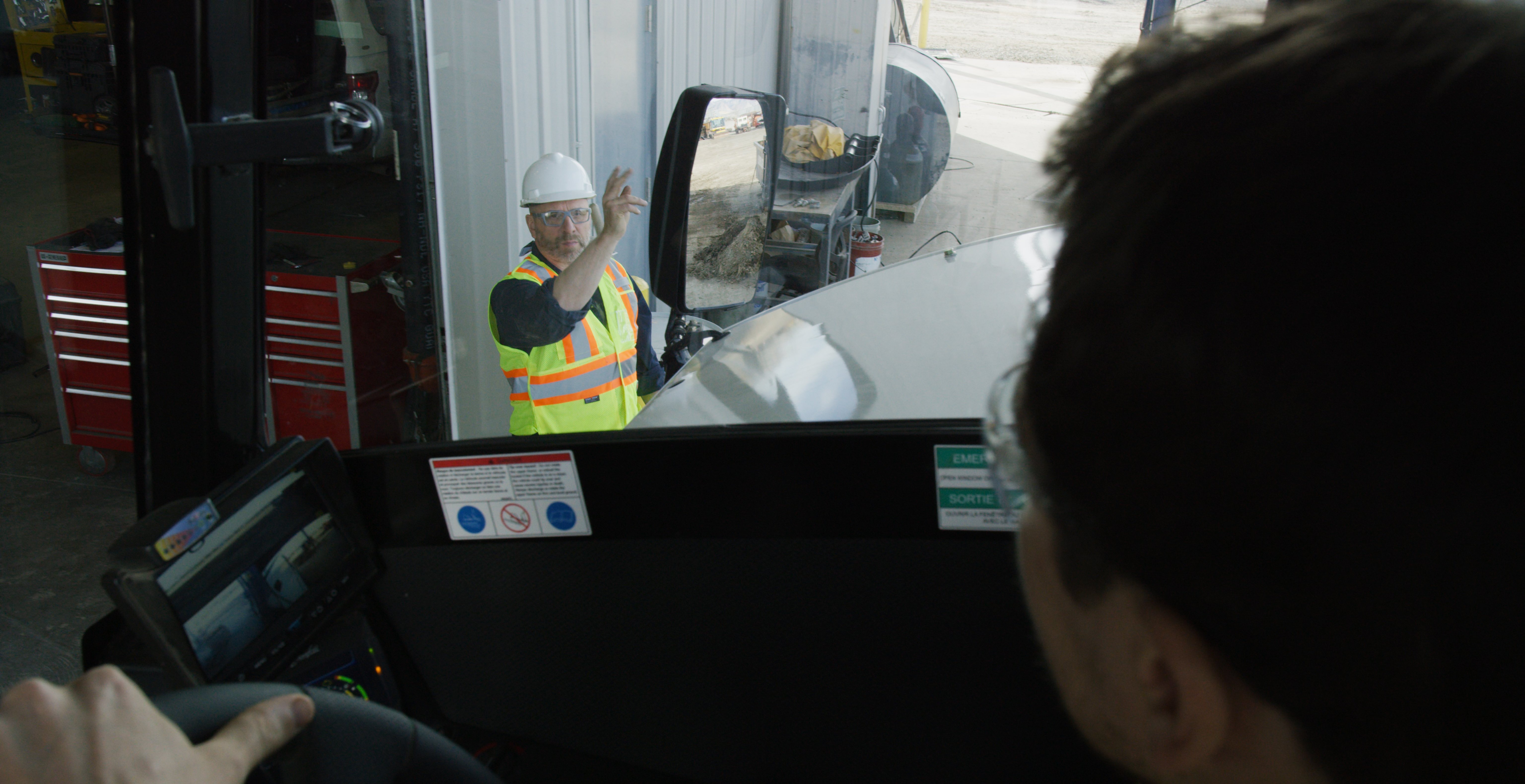

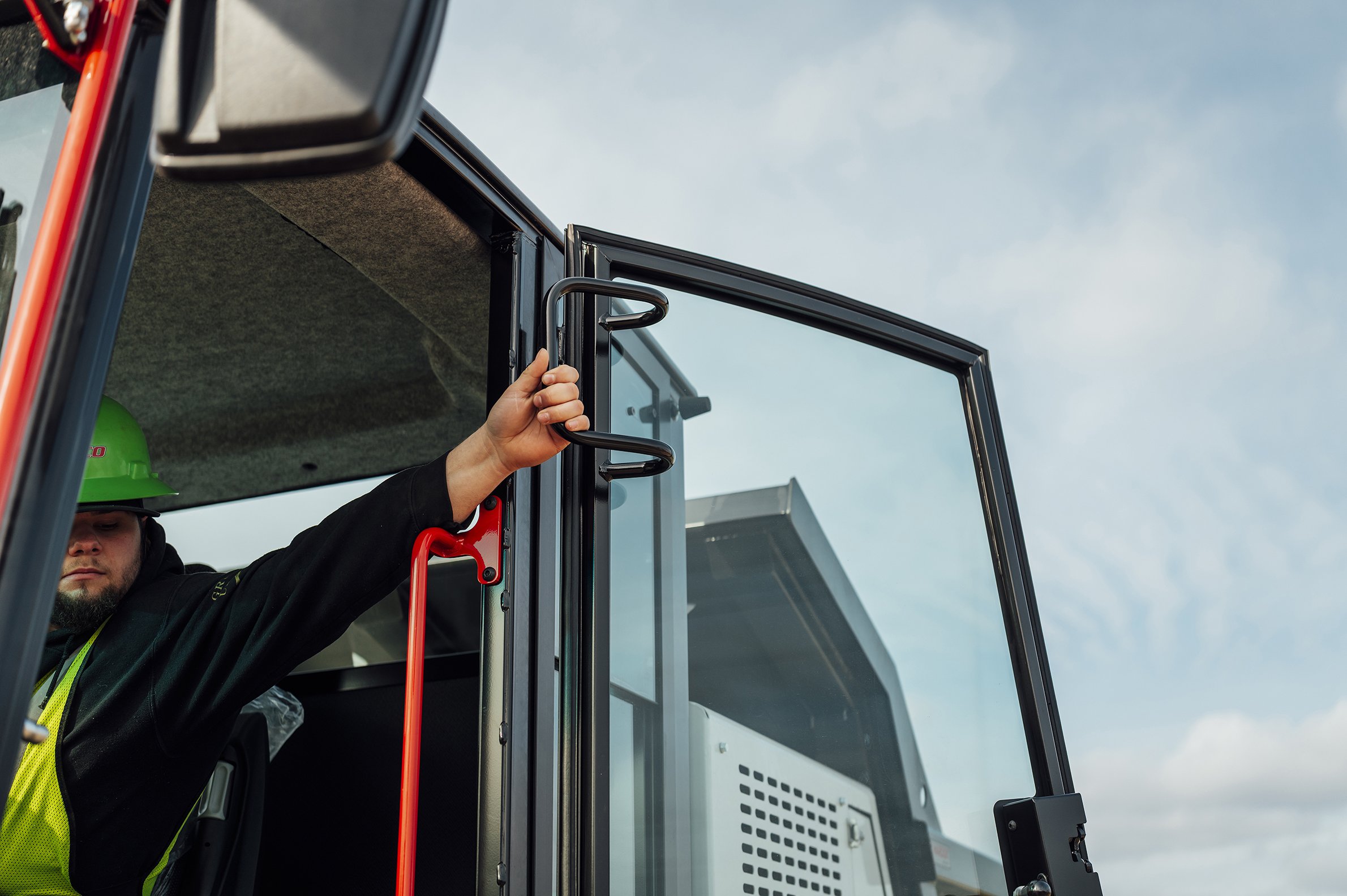

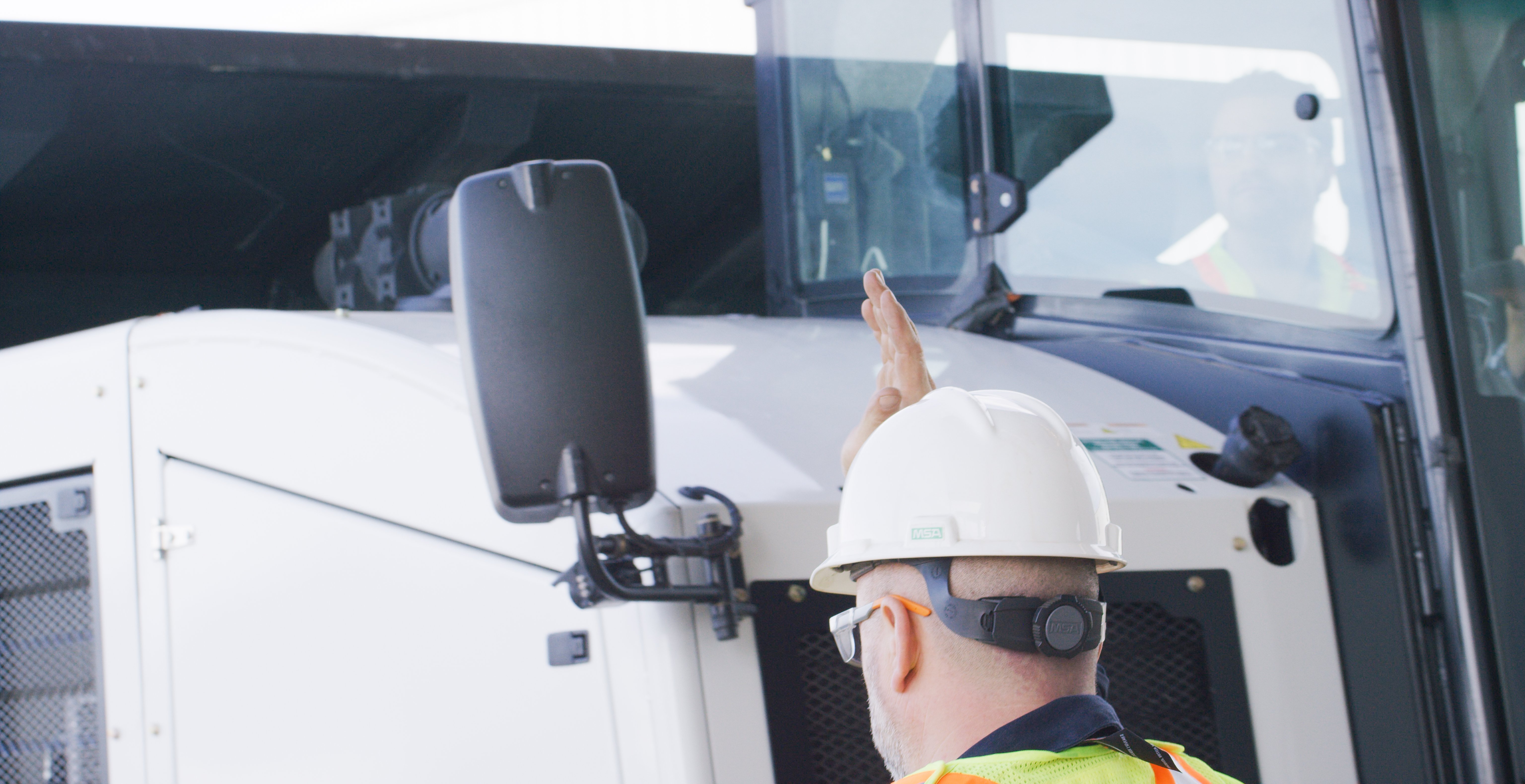

Unrestricted cab views provide safety and security for operators and other workers on the jobsite. Accidents can seriously impact productivity, and safety innovation is an excellent way to prevent them.

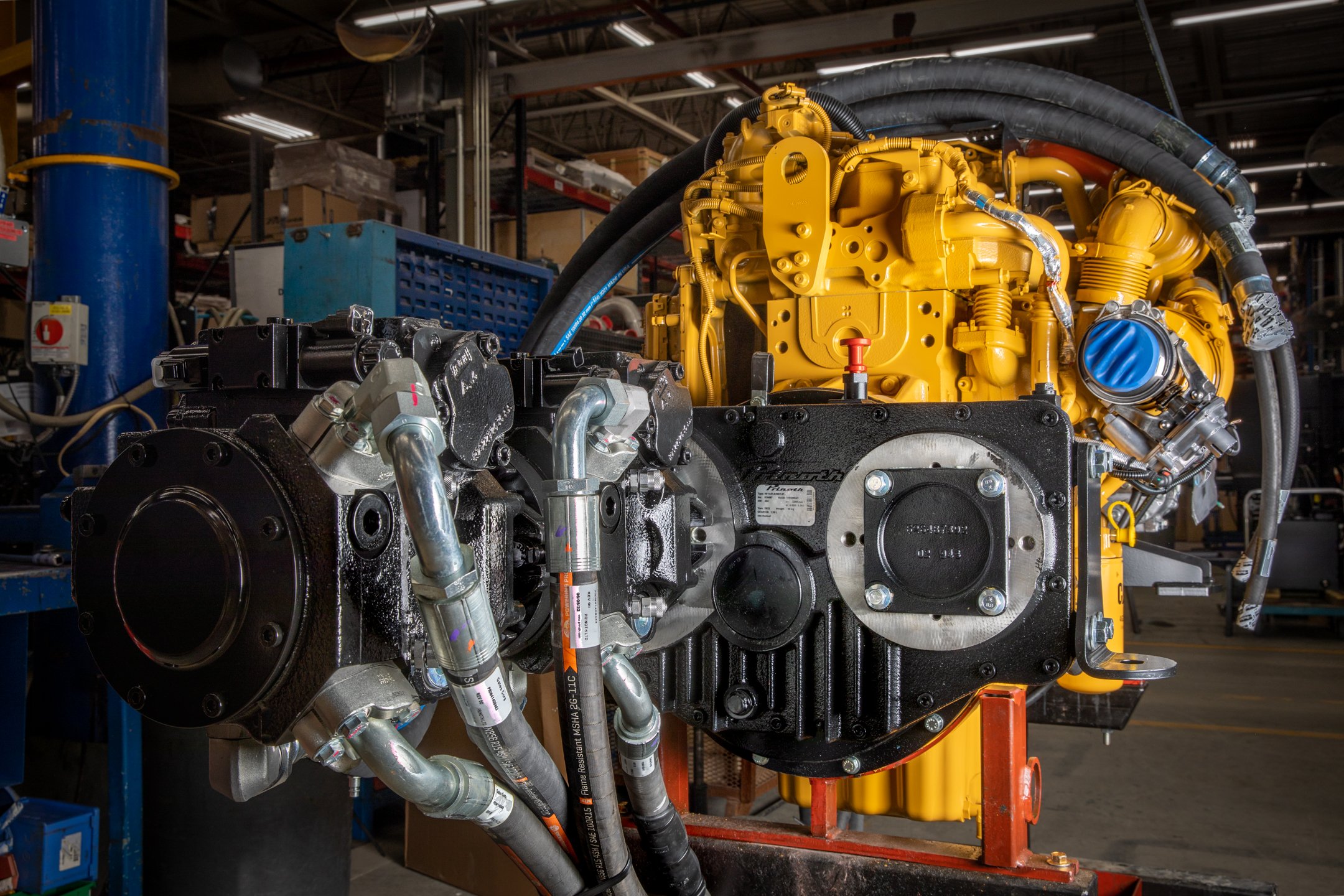

The Panther T9R was the first of the family to graduate to the EUROMOT Stage 5 Engine. Cleaner and more efficient, it is part of our commitment as our Clean Motion philosophy when it comes to protecting the environment.

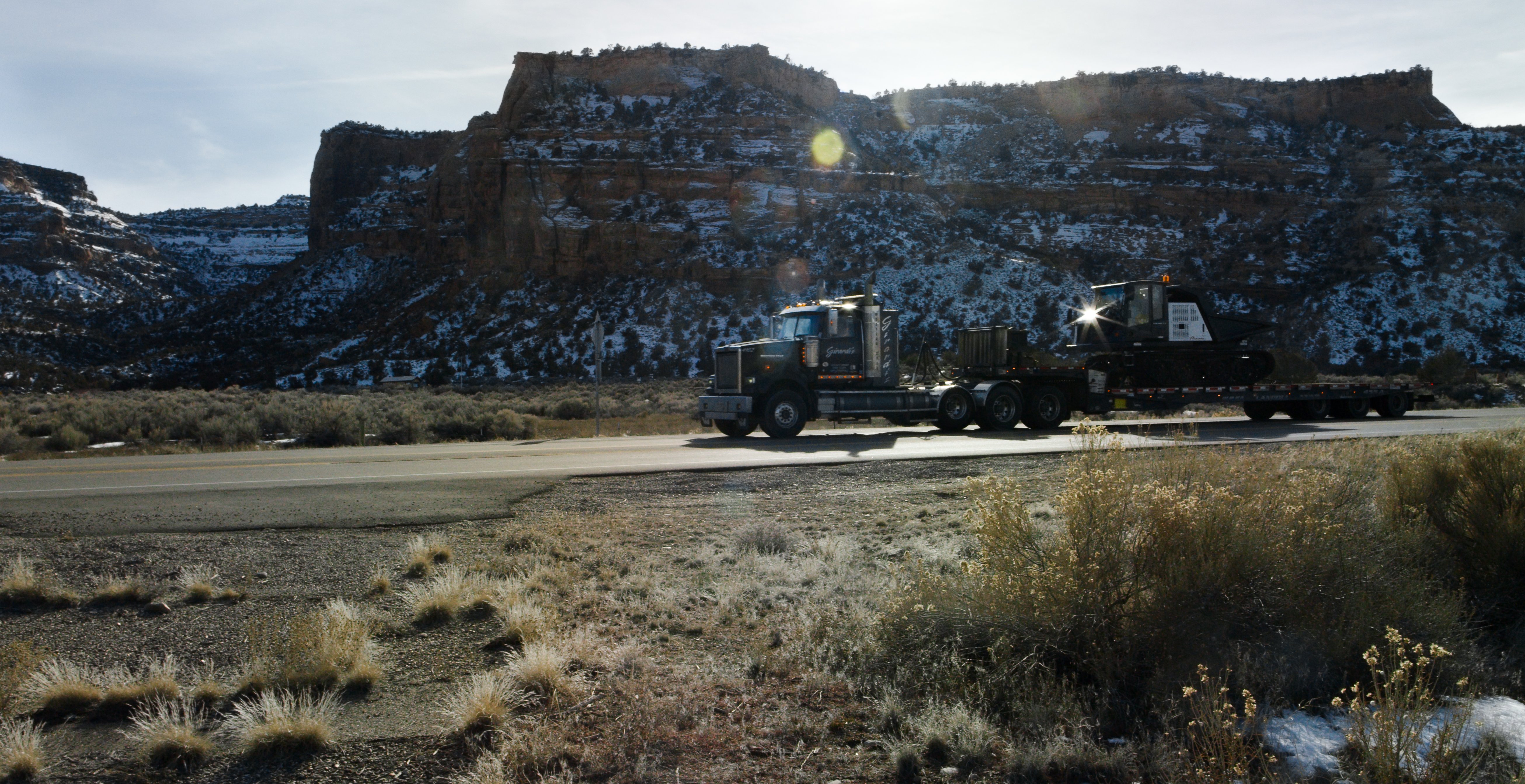

The vehicle is under 102 in/2.5 m wide, which complies with North American standard transportation regulations saving companies money and making transporting the vehicle from one site to another much easier.

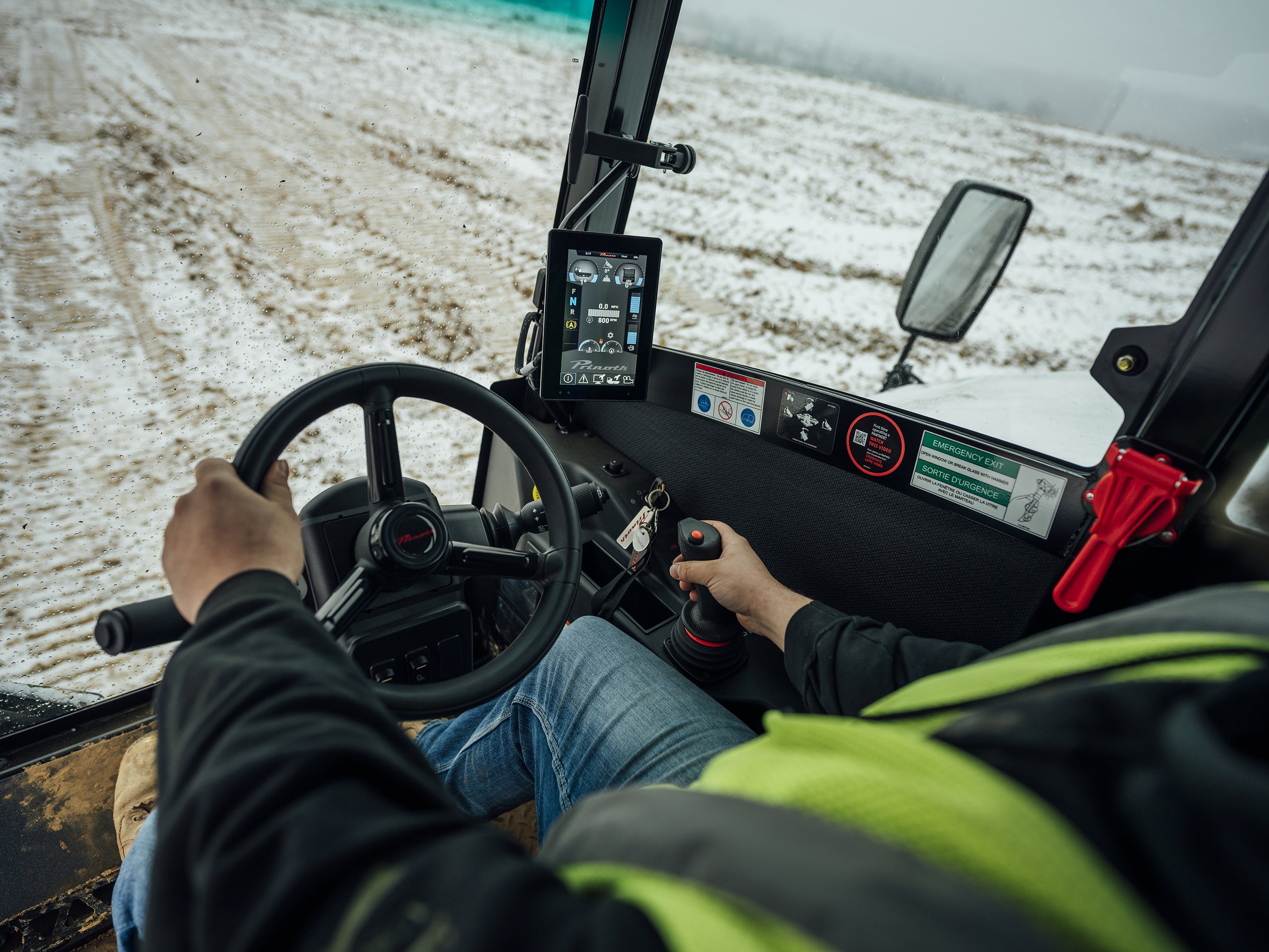

By simply pressing a button, the operator can realign the upper and lower portions of the vehicle using the direction reset function. Additionally, to make driving easier, the system can automatically invert the driving direction when a left or right rotation exceeds 90 degrees from the tracks. This is a key safety feature that also enhances productivity.
The operator will receive an alert on the main screen whenever the load exceeds the vehicle’s capacity. This feature helps prevent costly repairs by reducing the risk of repeated overloading.
Technical data
Download (PDF)
-
Payload
17,637 lb8,000 kg -
Heaped Capacity
6.5 yd³5.0 m³ -
Travel Speed
8.1 mph13 km/h -
Power
150 HP @ 2200 rpm201 kW @ 2200 rpm -
Ground pressure
3.0 psi21 kPa -
Maximum Gradeability Uphill/Downhill
33%15° -
Maximum Gradeability Side hill
33%15°
-
Weight
23,717 lb10,760 kg -
Length
206.5 in5,246 mm -
Shipping Width
98 in2,485 mm -
Height
112 in2,853 mm -
Fording depth
37 in932 mm -
Engine
CAT C4.4 Diesel engine EPA Tier 4 Final/EU Stage VCAT C4.4 Diesel engine EPA Tier 4 Final/EU Stage V
