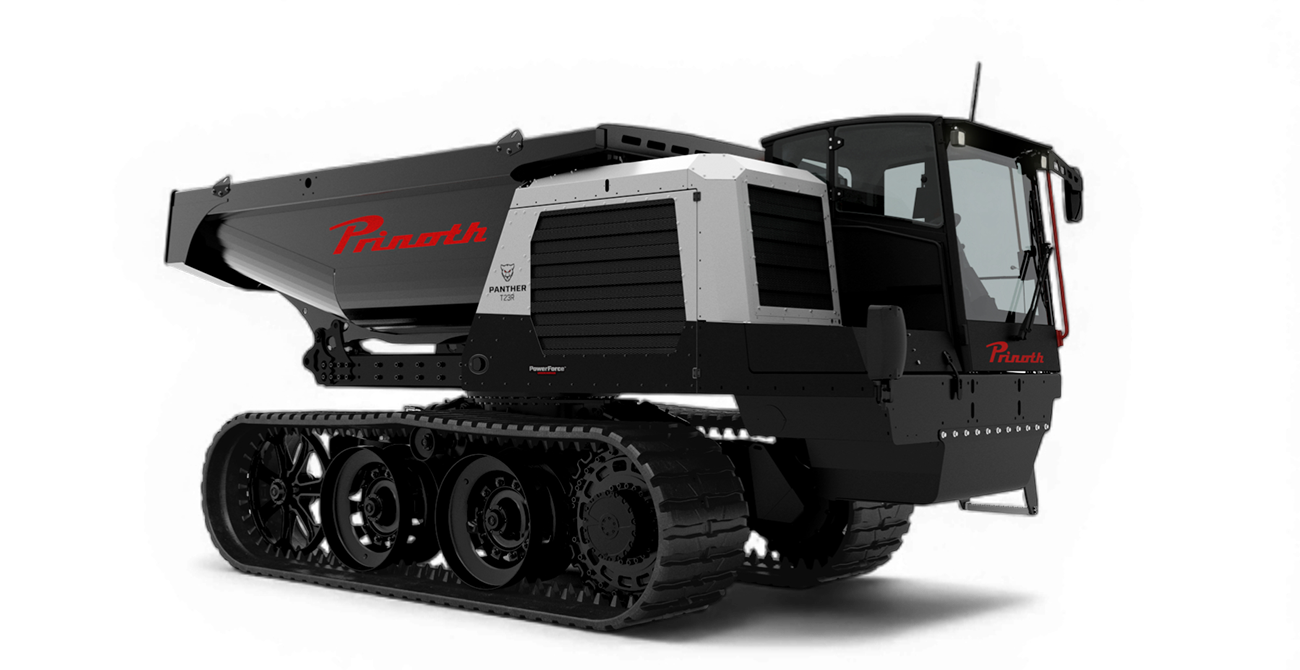

PANTHER T23R

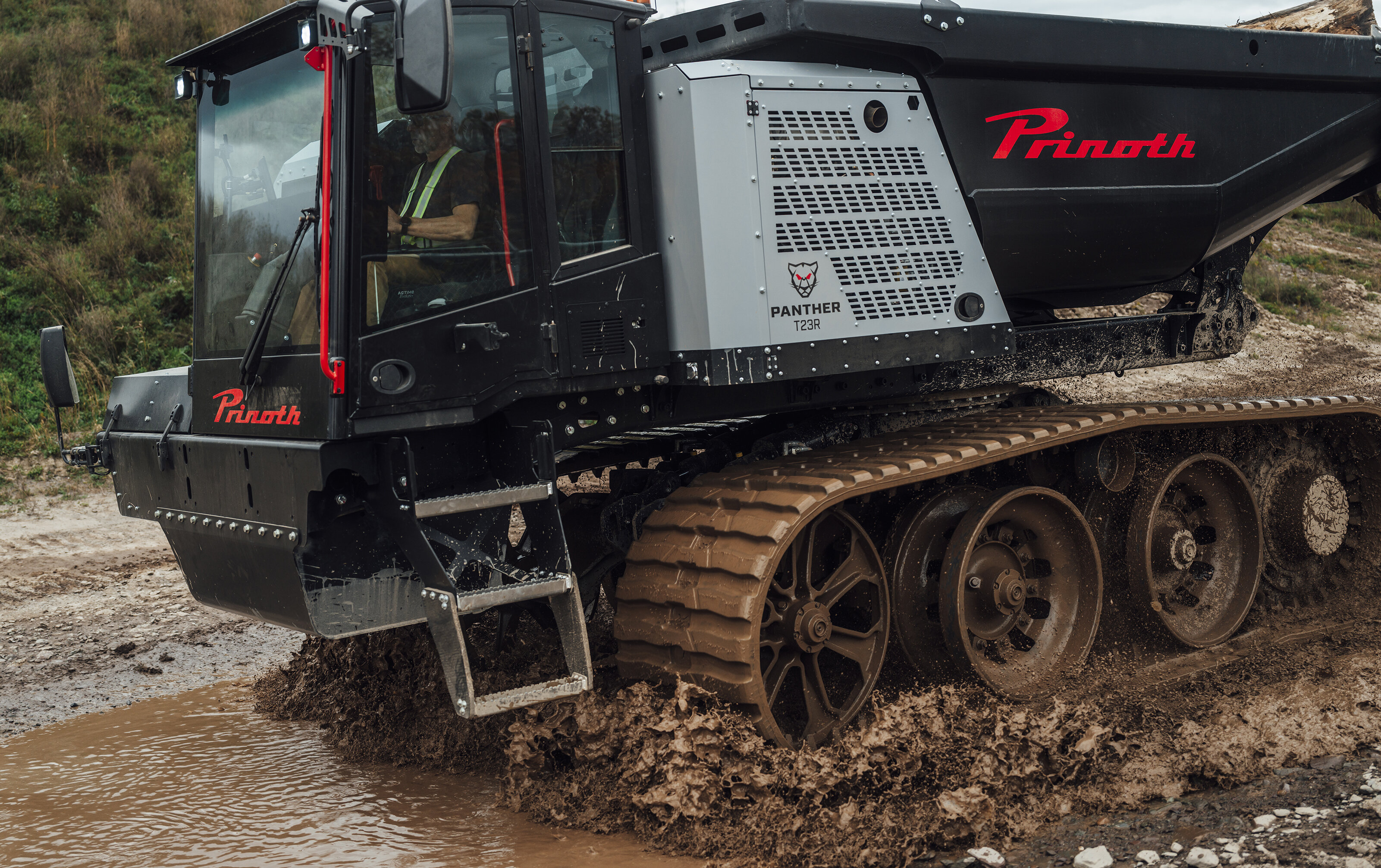

Driven by PowerForce™
Payload
Heaped Capacity
Travel Speed

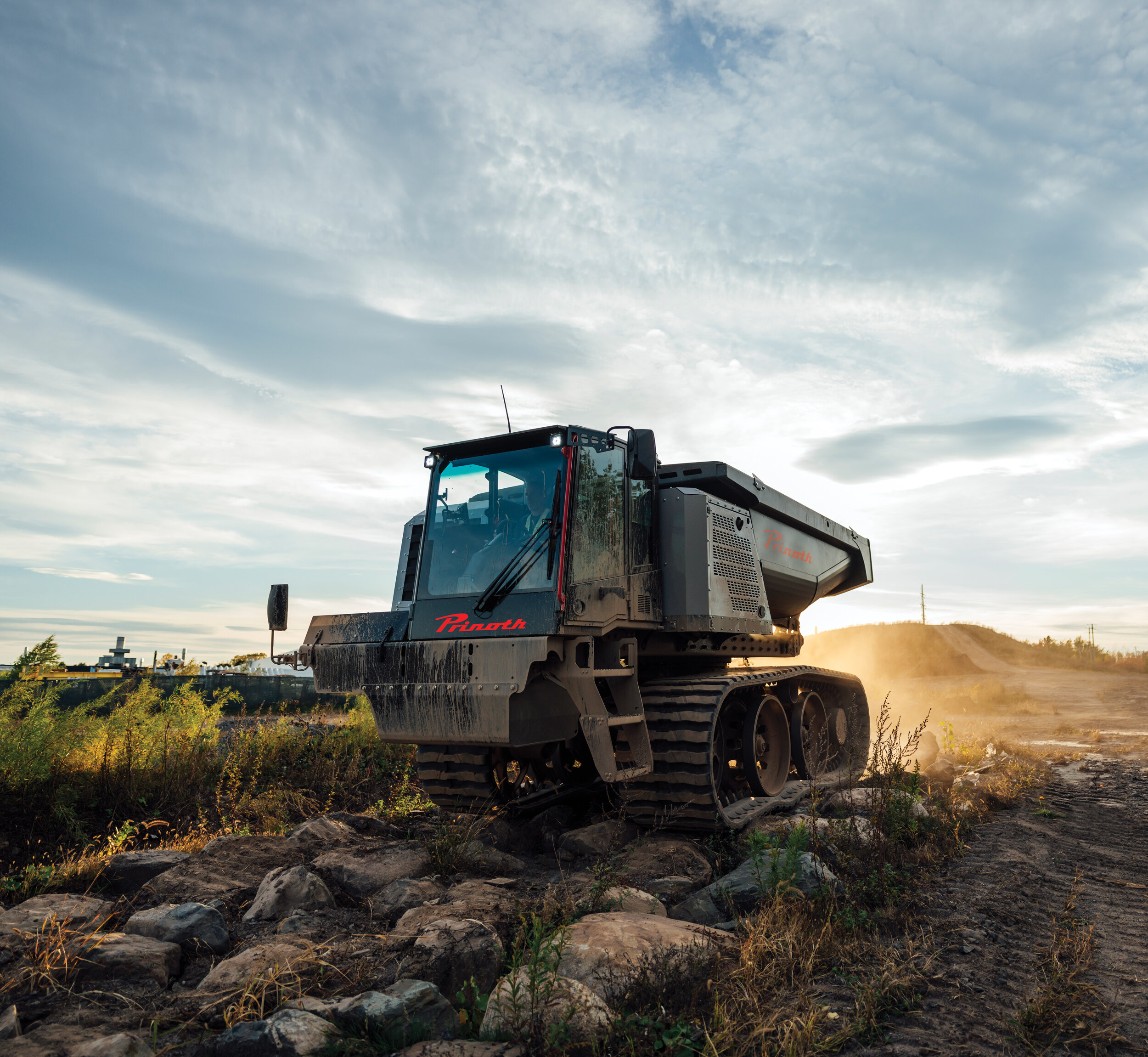

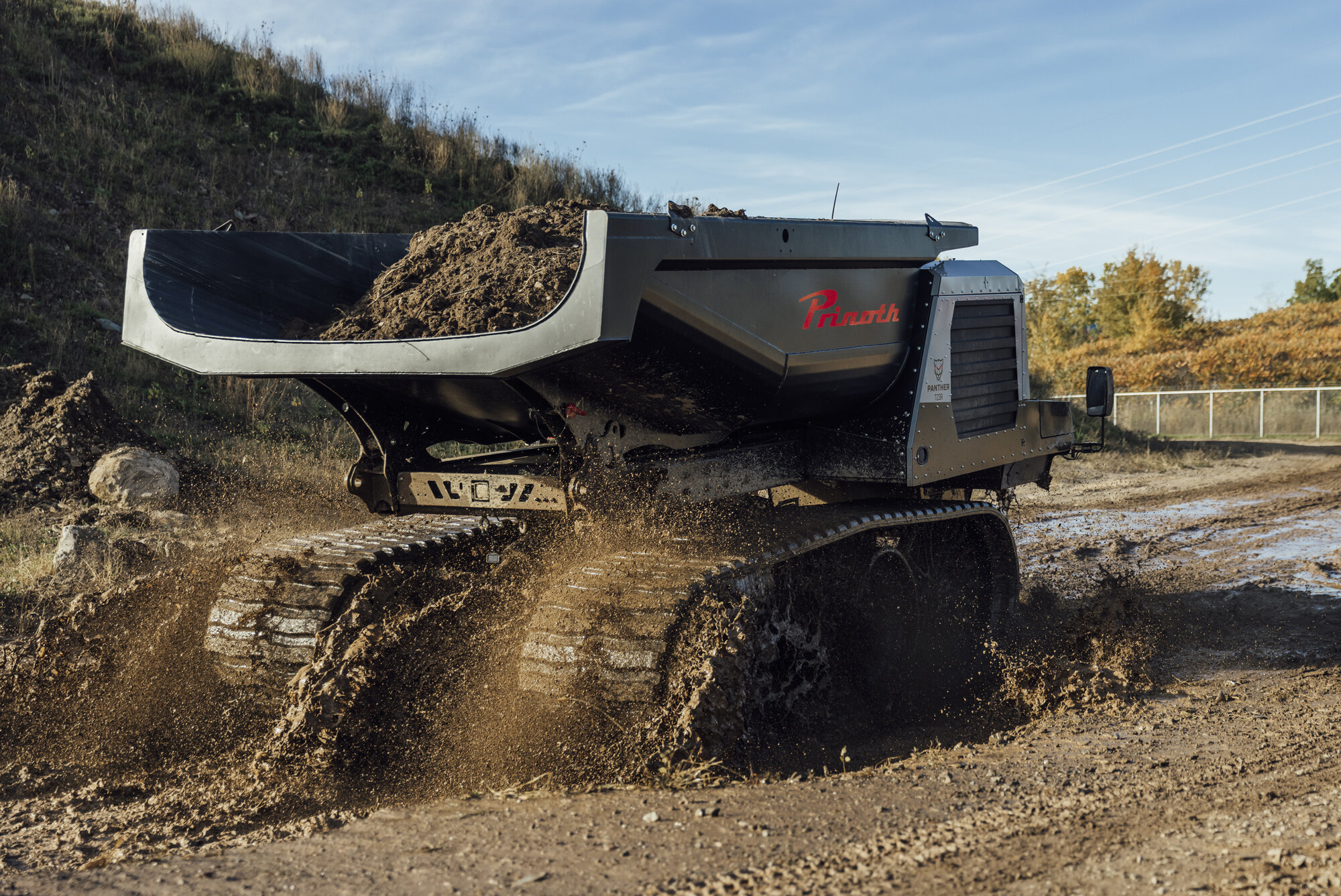

Panther T23r

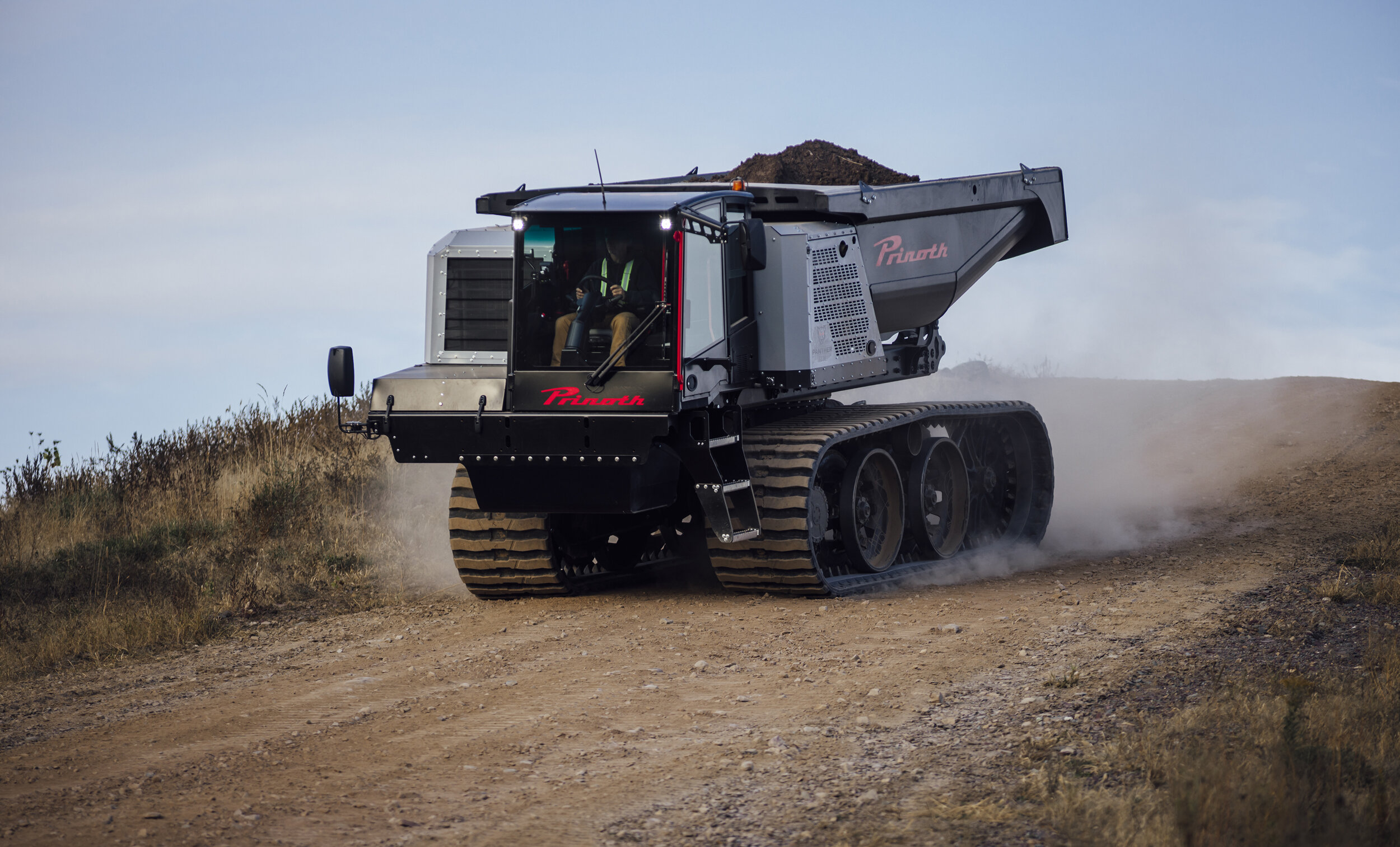

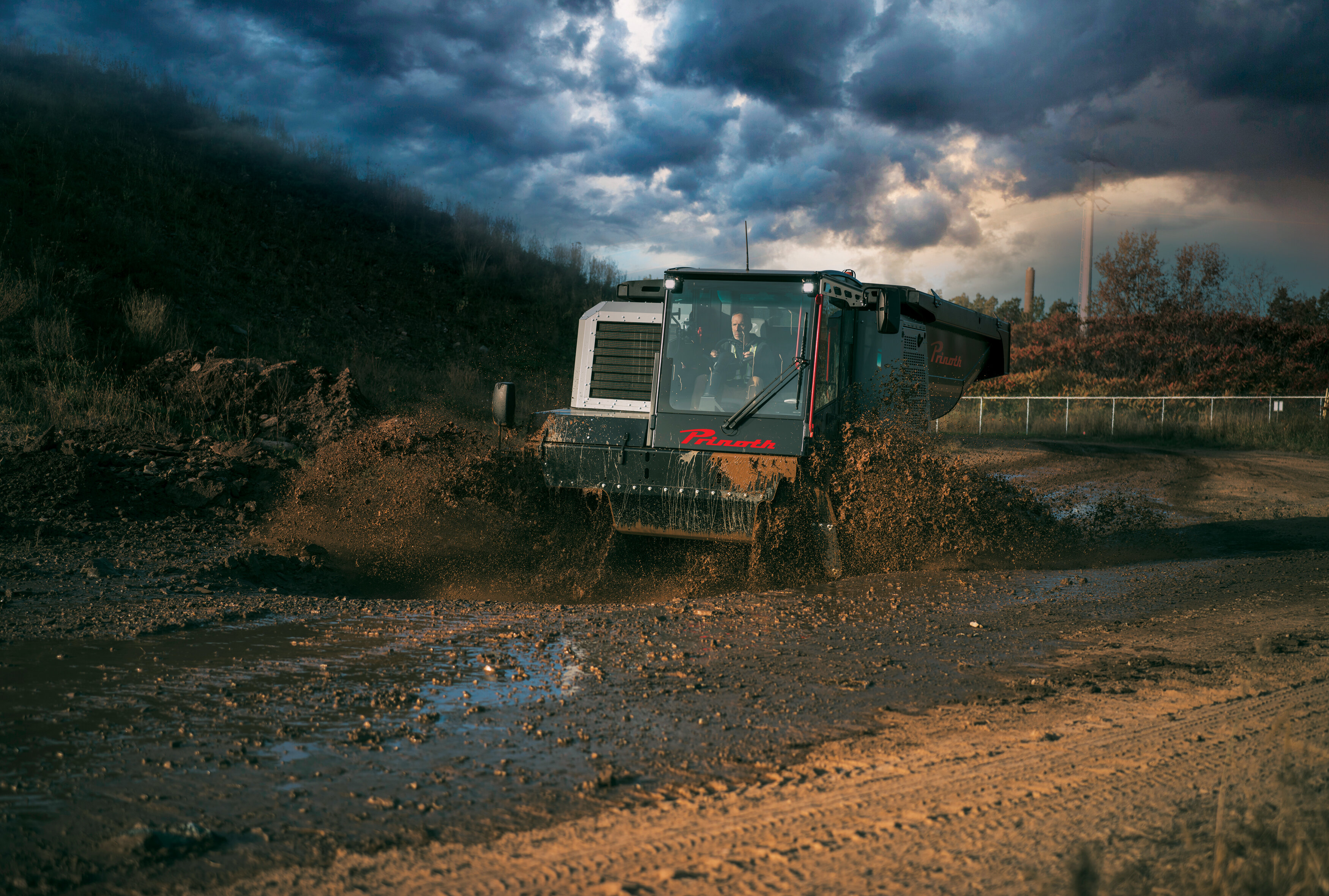

This powerhouse provides the best mobility on all types of terrain and allows contractors and their crew to reach jobsites on all types of grounds. Driven by the PowerForce™ Undercarriage, the Panther T23r moves through grounds that stop other machines, steep grades, soft soils, rocks, logs and even stumps.
Features

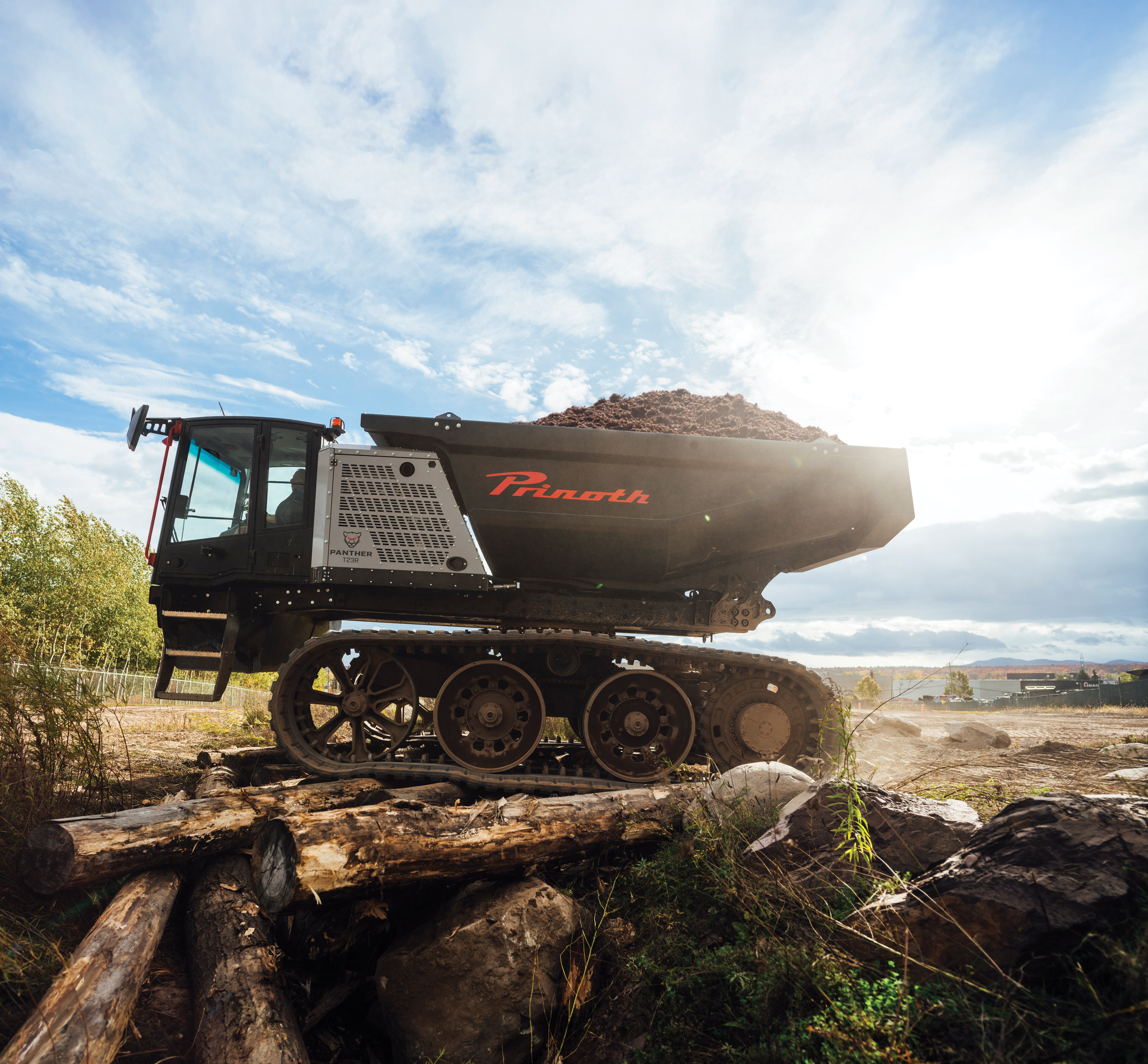

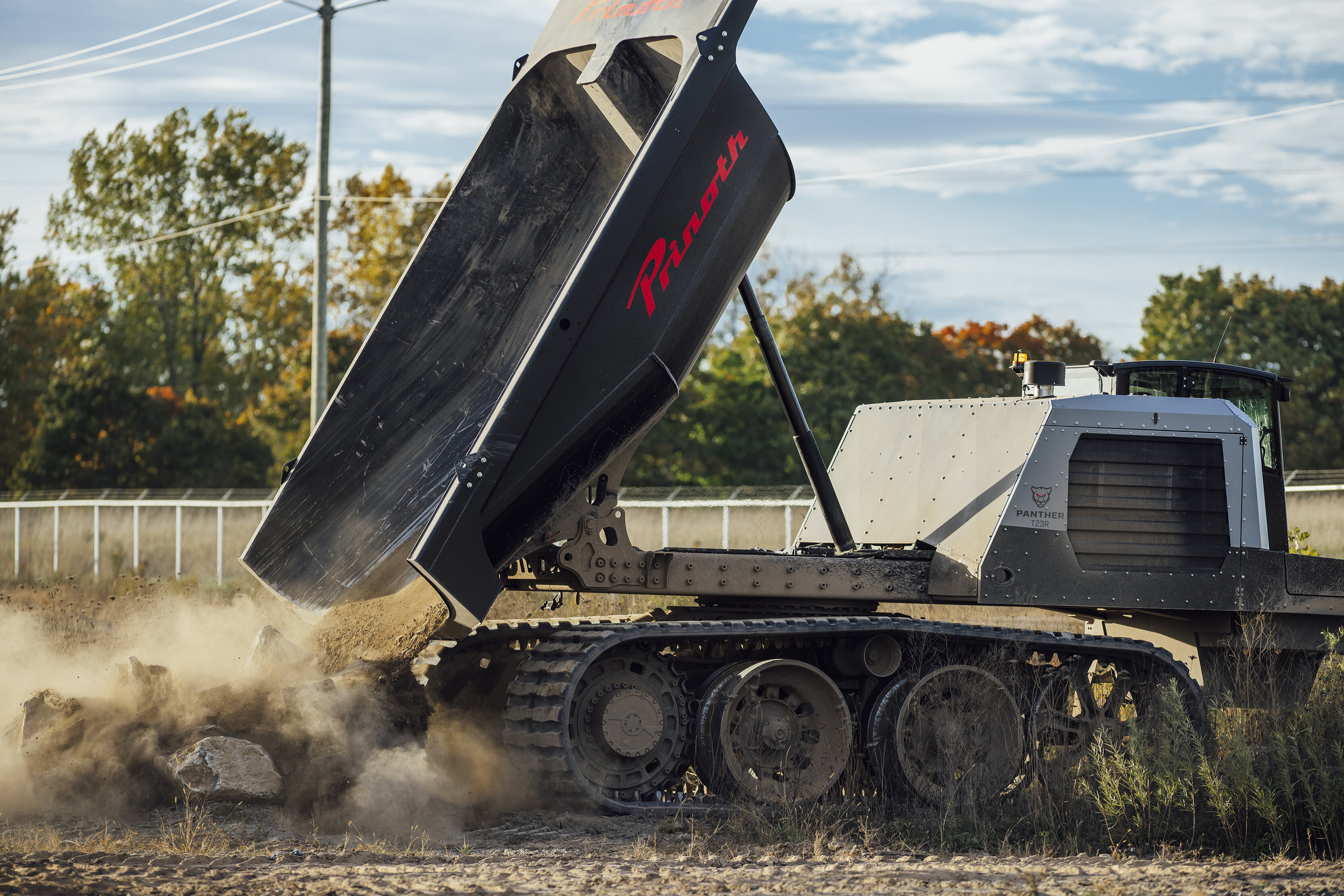

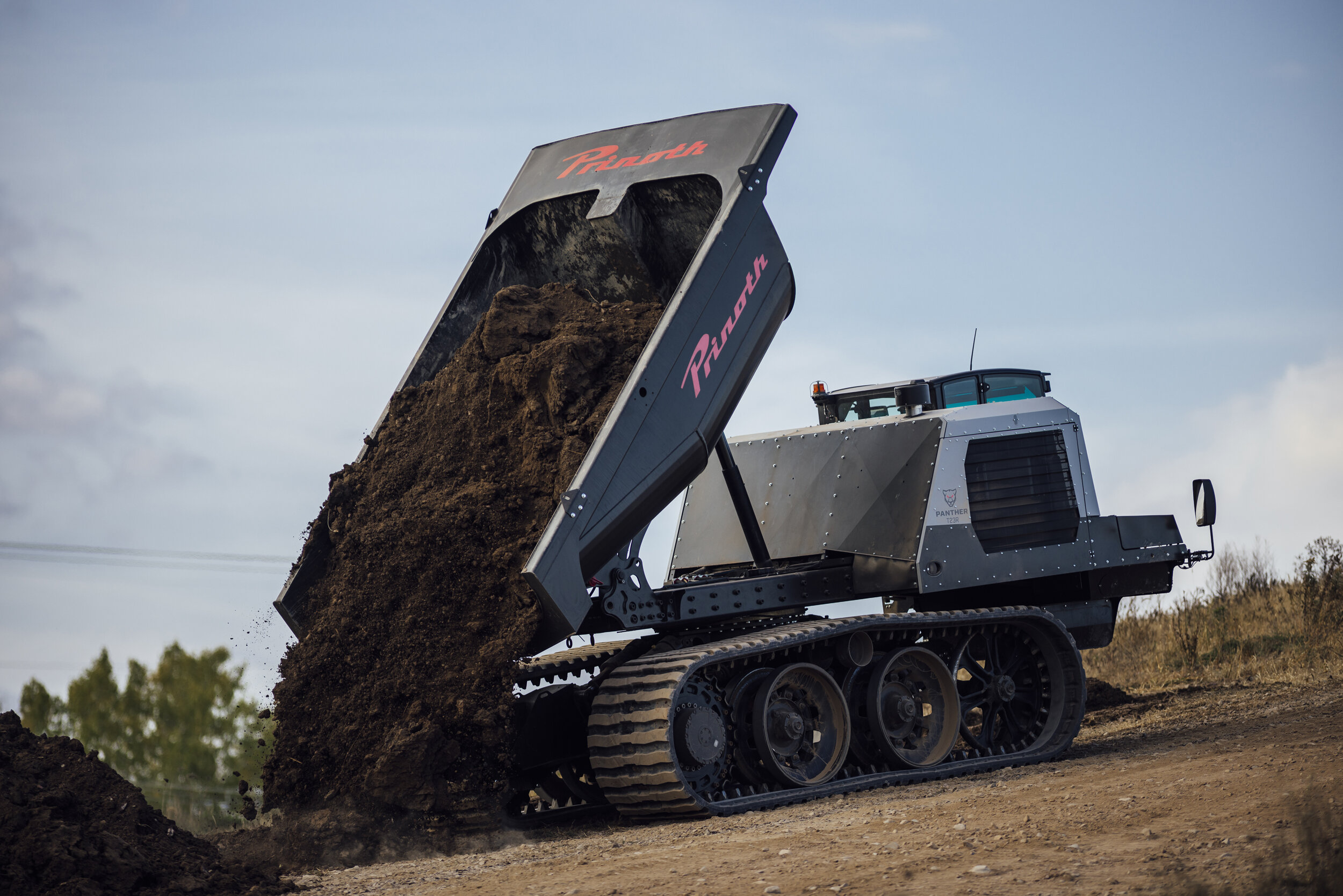

Built from Hardox™ steel, the rounded dump box delivers exceptional rigidity and faster, cleaner material discharge. With a 23-US-short-ton payload capacity, it is supported by a telescopic cylinder that reduces system stress, enhances durability, and lowers overall vehicle weight by one ton.
A next-generation undercarriage powered by over 20 patent-pending innovations, engineered to conquer the most demanding terrain with unmatched performance.
> Discover more

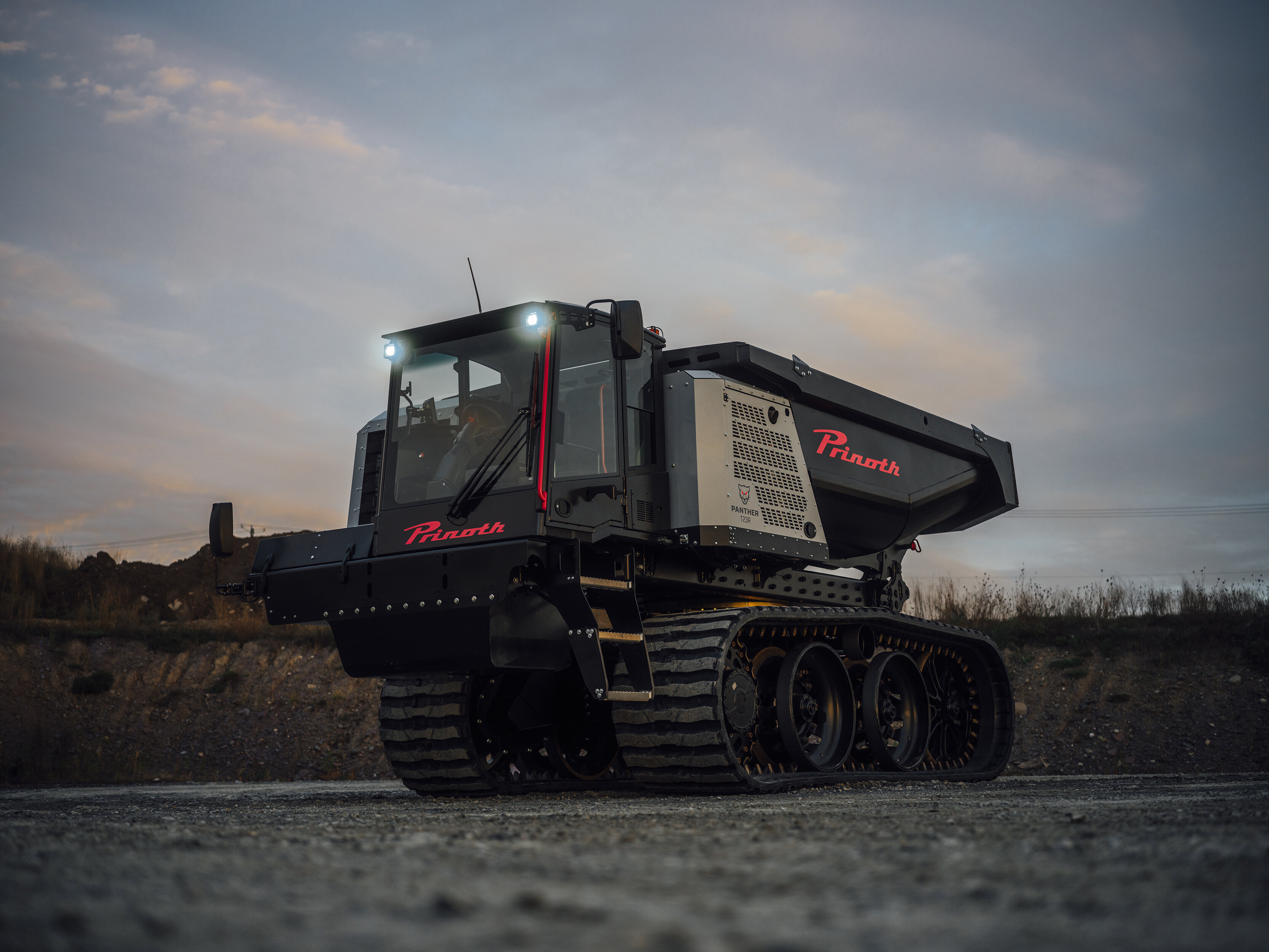

A smart crawler architecture with balanced weight distribution, a high-strength steel structure, and an almost-centered driving position for optimal control. This design improves climbing ability, ground contact, and overall stability, creating a highly maneuverable carrier that protects terrain, reduces undercarriage wear, and offers precise control even in confined areas.

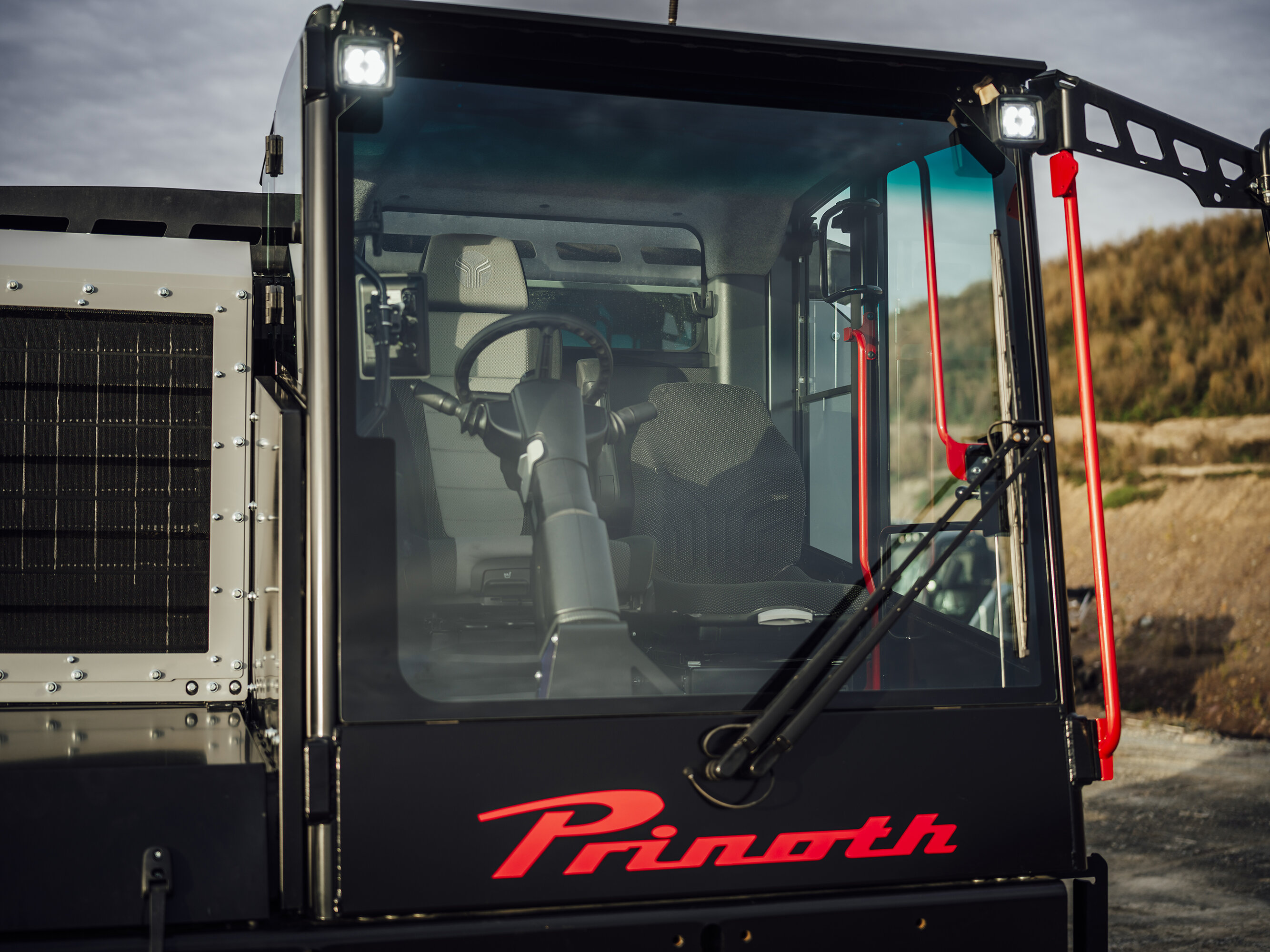

A cab designed for superior operator comfort, with a premium air-ride seat, intuitive touchscreen display, ergonomic joystick controls, sun visor, and an optional buddy seat, creating a comfortable, efficient working environment throughout long shifts.

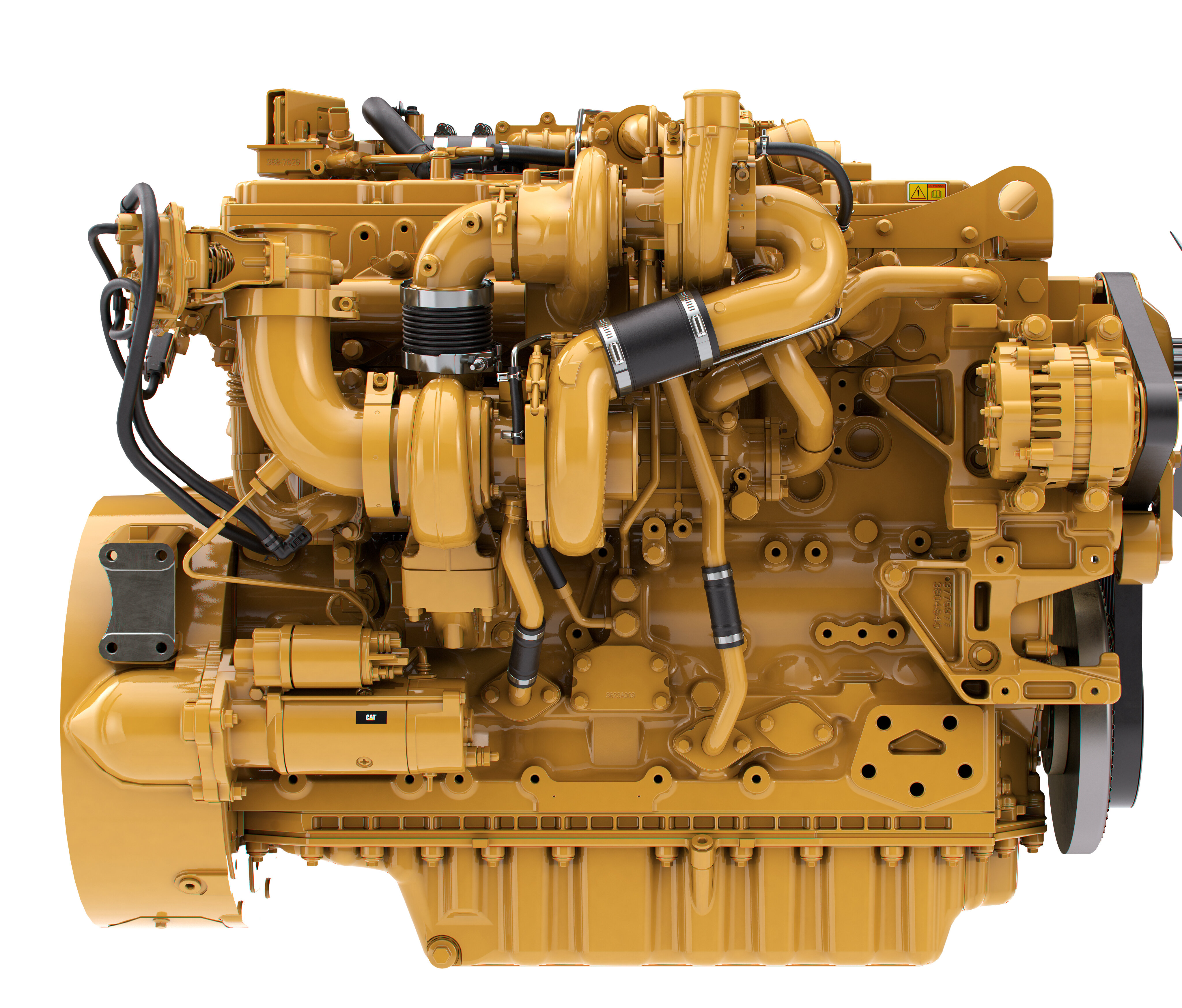

Powered by a CAT C7.1 high-efficiency engine recognized across the industry for its remarkable balance of power, responsiveness, and fuel economy.
Technical data
Download (PDF)
-
Payload
45,195 lb20,500 kg -
Heaped Capacity
15.2 yd³11.6 m³ -
Travel Speed
10.9 mph17,5 km/h -
Power
320hp @ 1800 rpm239 kW @ 1800 rpm -
Ground pressure
3.90 psi26.9 kPa -
Maximum Gradeability Uphill/Downhill
15°27% -
Maximum Gradeability Side hill
15°27%
-
Weight
45,415 lb20,600 kg -
Length
264 in6,701 mm -
Shipping Width
118 in3,000 mm -
Height
125 in3,174 mm -
Fording depth
63 in1,594 mm -
Standard Equipment
Spacious wide cab – 1 person
Air conditioning
Touchscreen 7" (178 mm) Display
Rear and side-view camerasSpacious wide cab – 1 person
Air conditioning
Touchscreen 7" (178 mm) Display
Rear and side-view cameras -
Optional Equipment
Trainer seat
Heated side mirrors
360 view camera
Bio oil and filterTrainer seat
Heated side mirrors
360 view camera
Bio oil and filter
POWERFORCE™ UNDERCARRIAGE
A next-generation undercarriage powered by over 20 patent-pending innovations, engineered to conquer the most demanding terrain with unmatched performance.

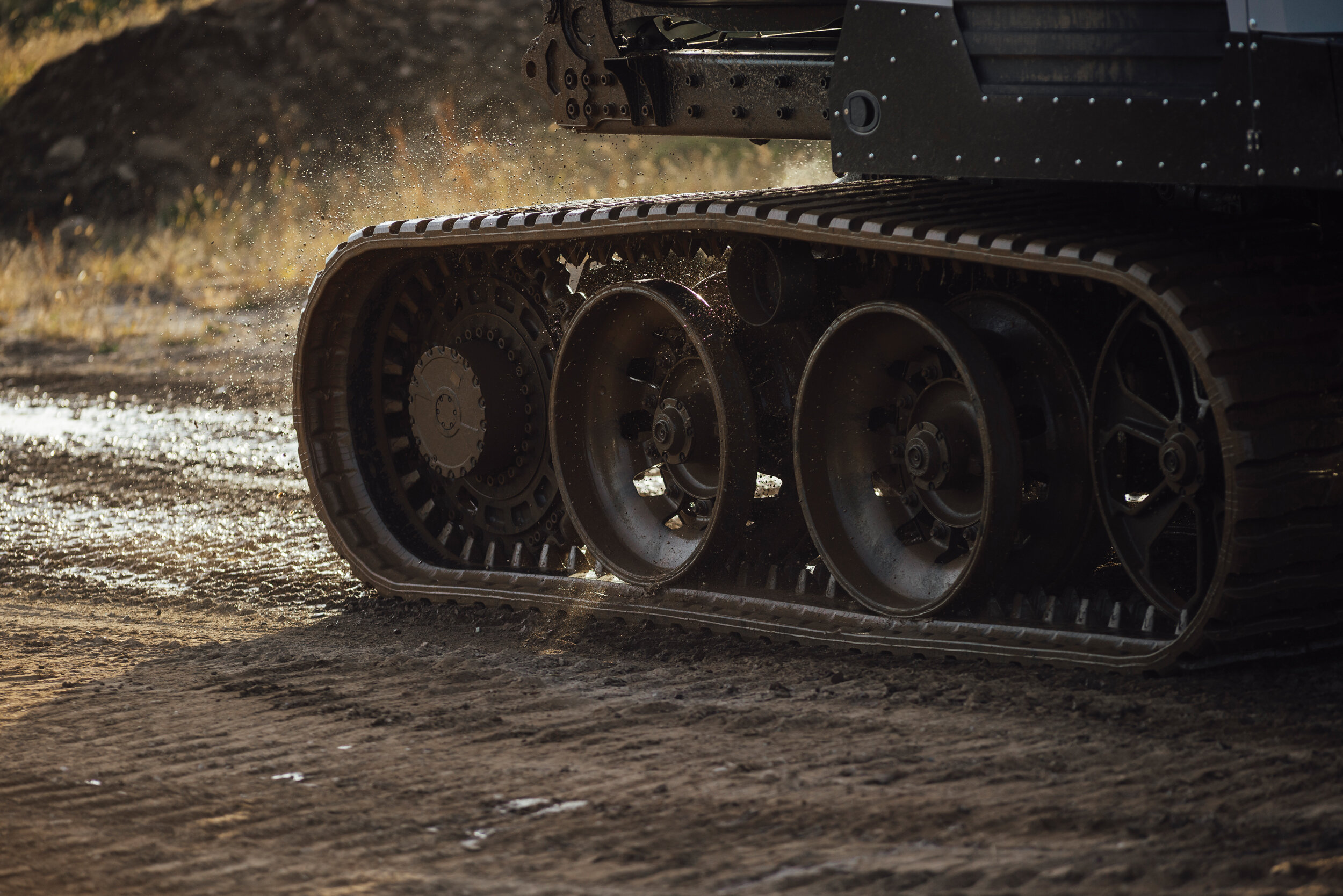

Oblong-Shape Track
Our oblong track design reduces the number of bend points by half while doubling the bend radius. This minimizes power loss, allowing more engine power to reach the ground. The result is greater productivity and higher travel speeds across any terrain.

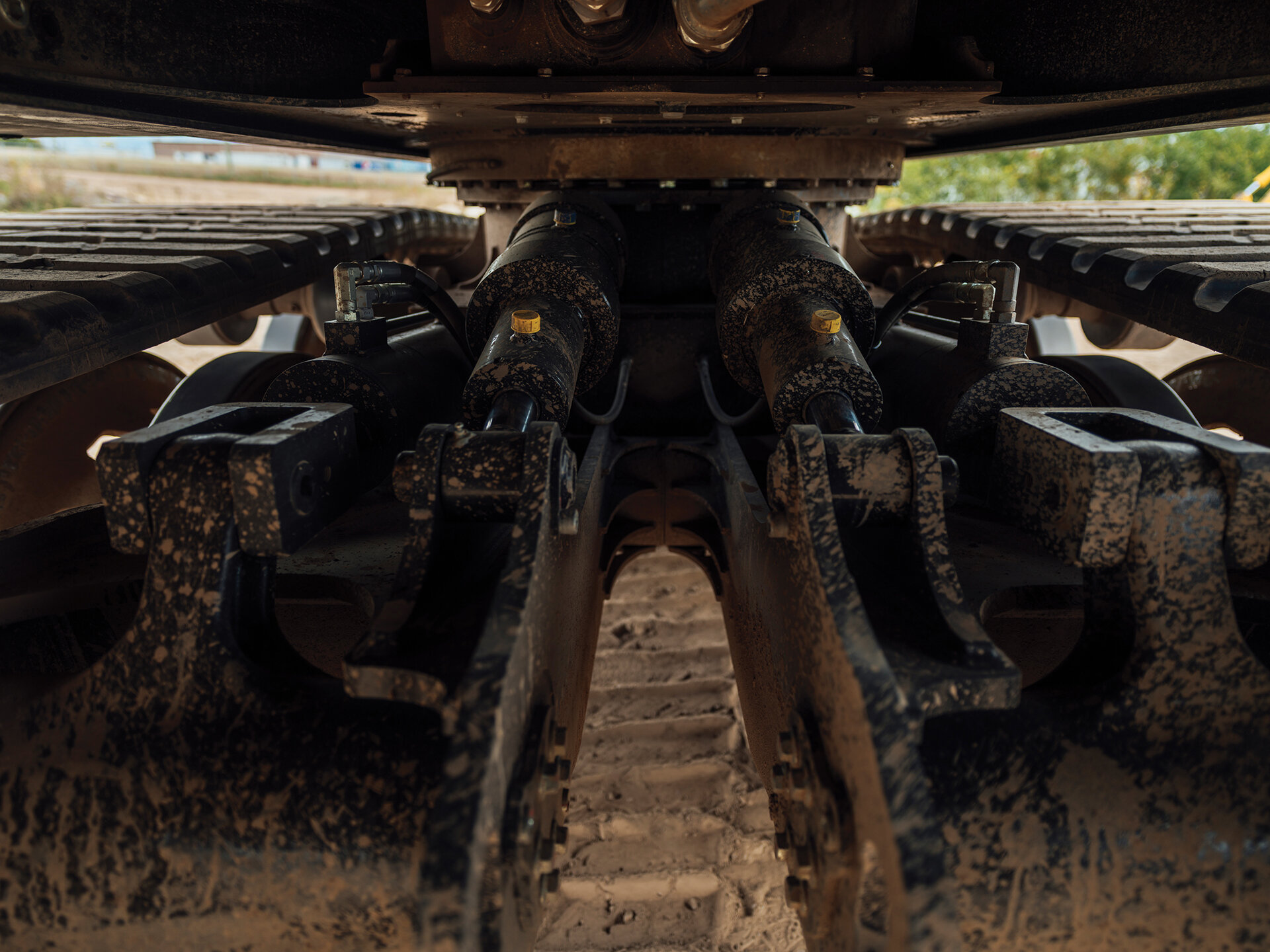

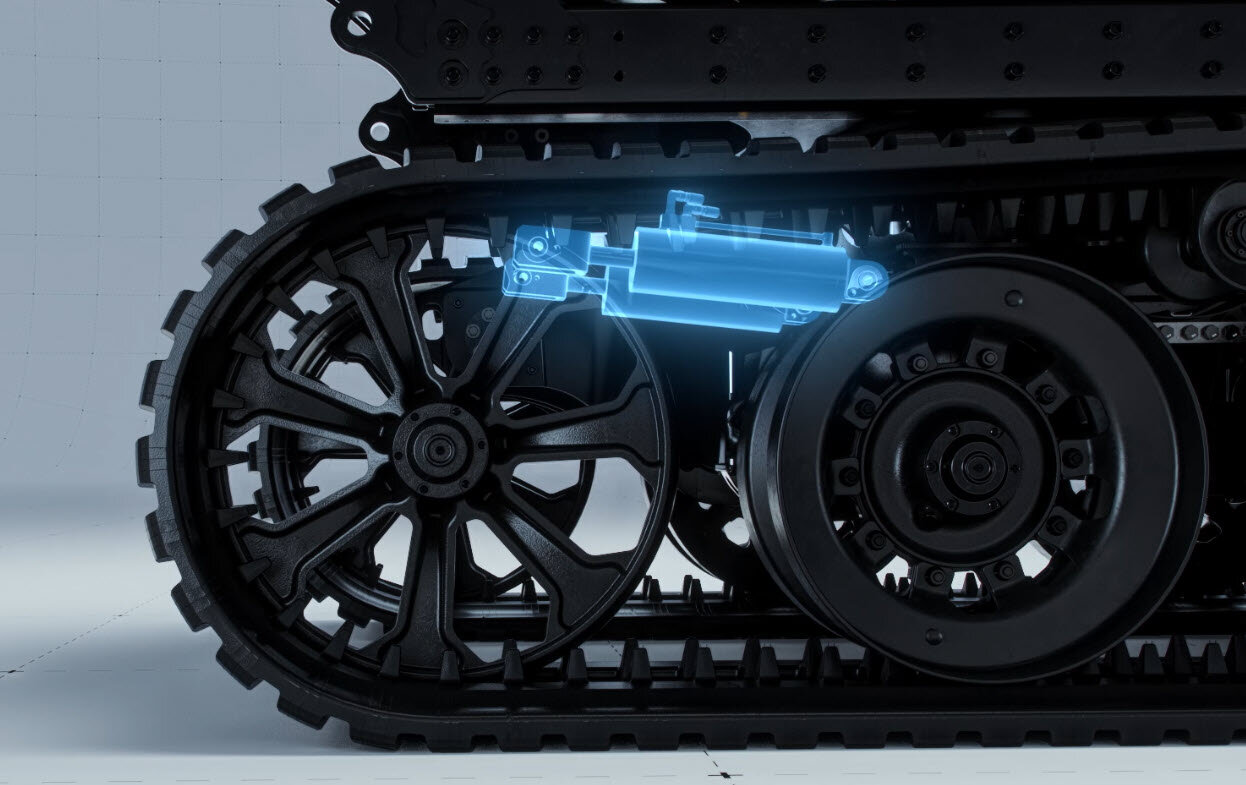

Track Tensioning System
The Intelligent Dual-Action Track Tensioning System continuously optimizes track tension in real time. It reduces tension under light loads to minimize wear, then automatically increases tension when higher torque is required, extending undercarriage life while maximizing performance.

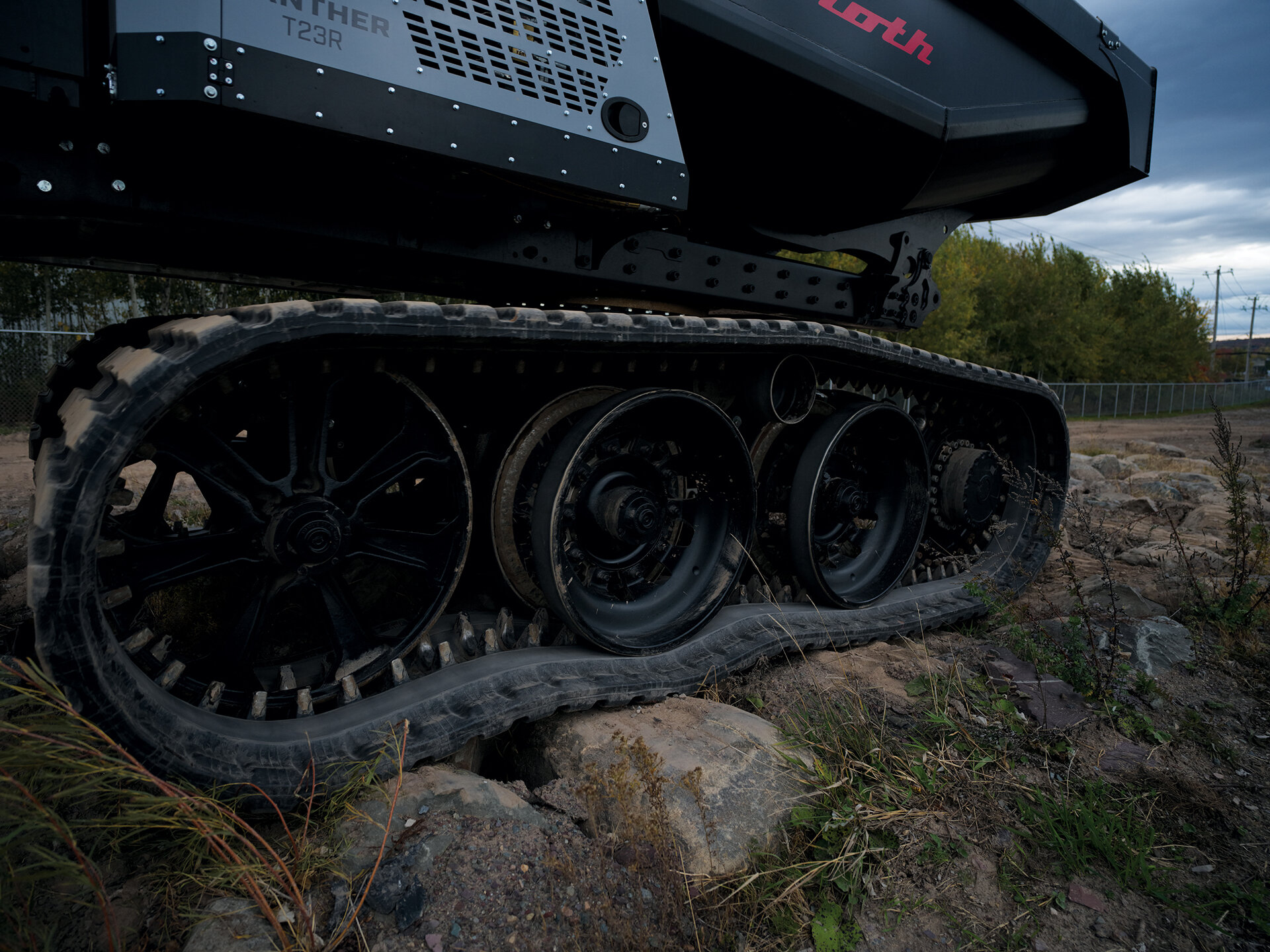

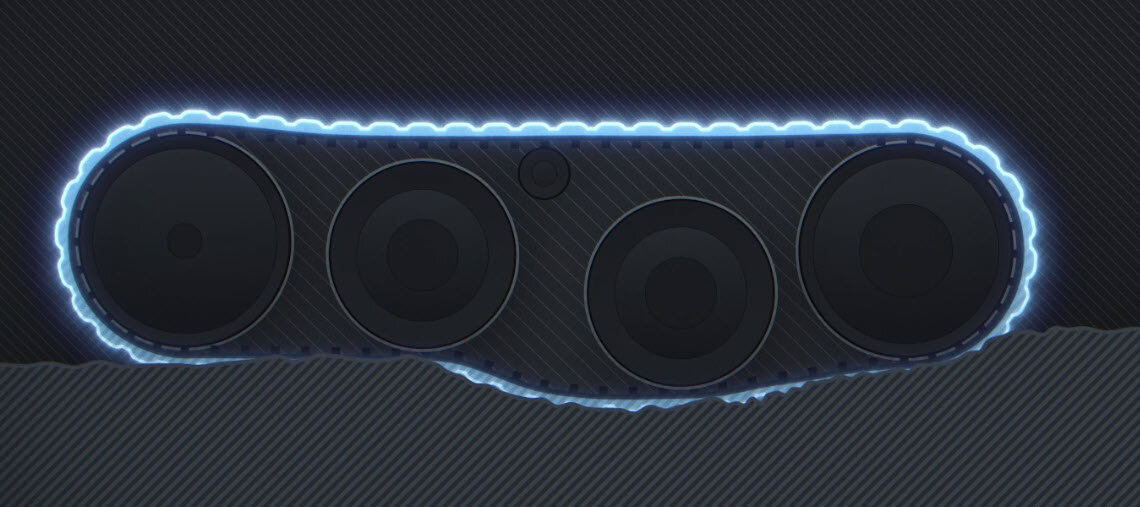

Independent Suspension
Each wheel is mounted on its own suspension arm with 7 inches of travel. Every arm moves independently, keeping the track in constant contact with the ground for a smoother ride, improved traction, and minimal soil disturbance.

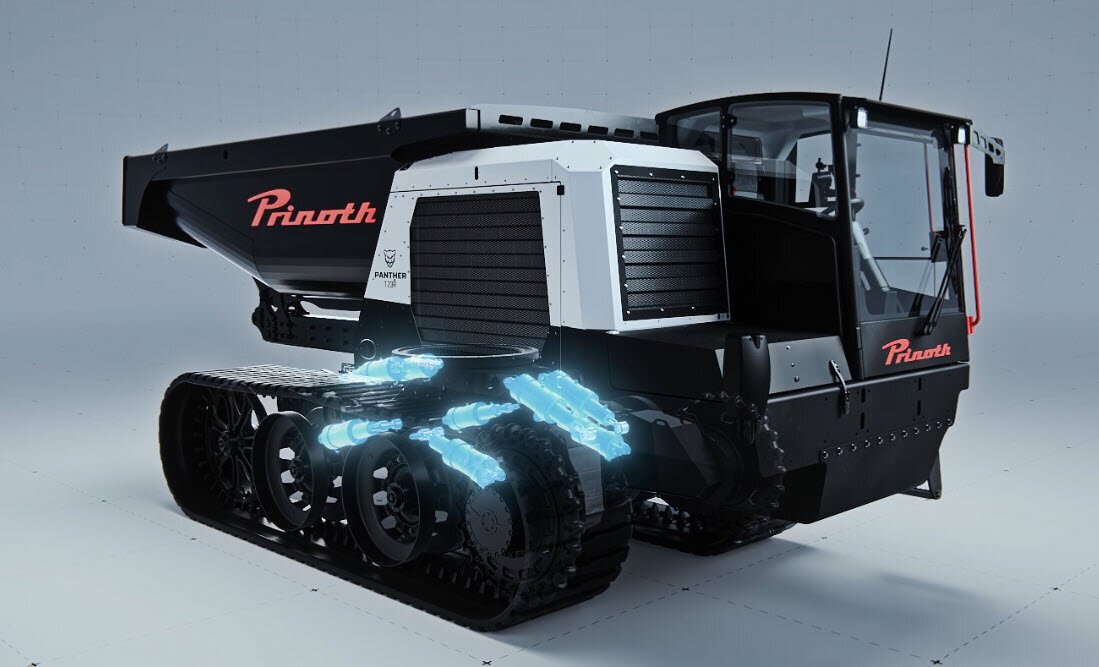

Dual-Shock Absorbers
Prinoth's dual-setting suspension automatically adjusts shock stiffness based on payload. By continuously sensing load changes, it switches seamlessly between empty and loaded modes to deliver consistent ride comfort, predictable handling, and reduced stress on key components.

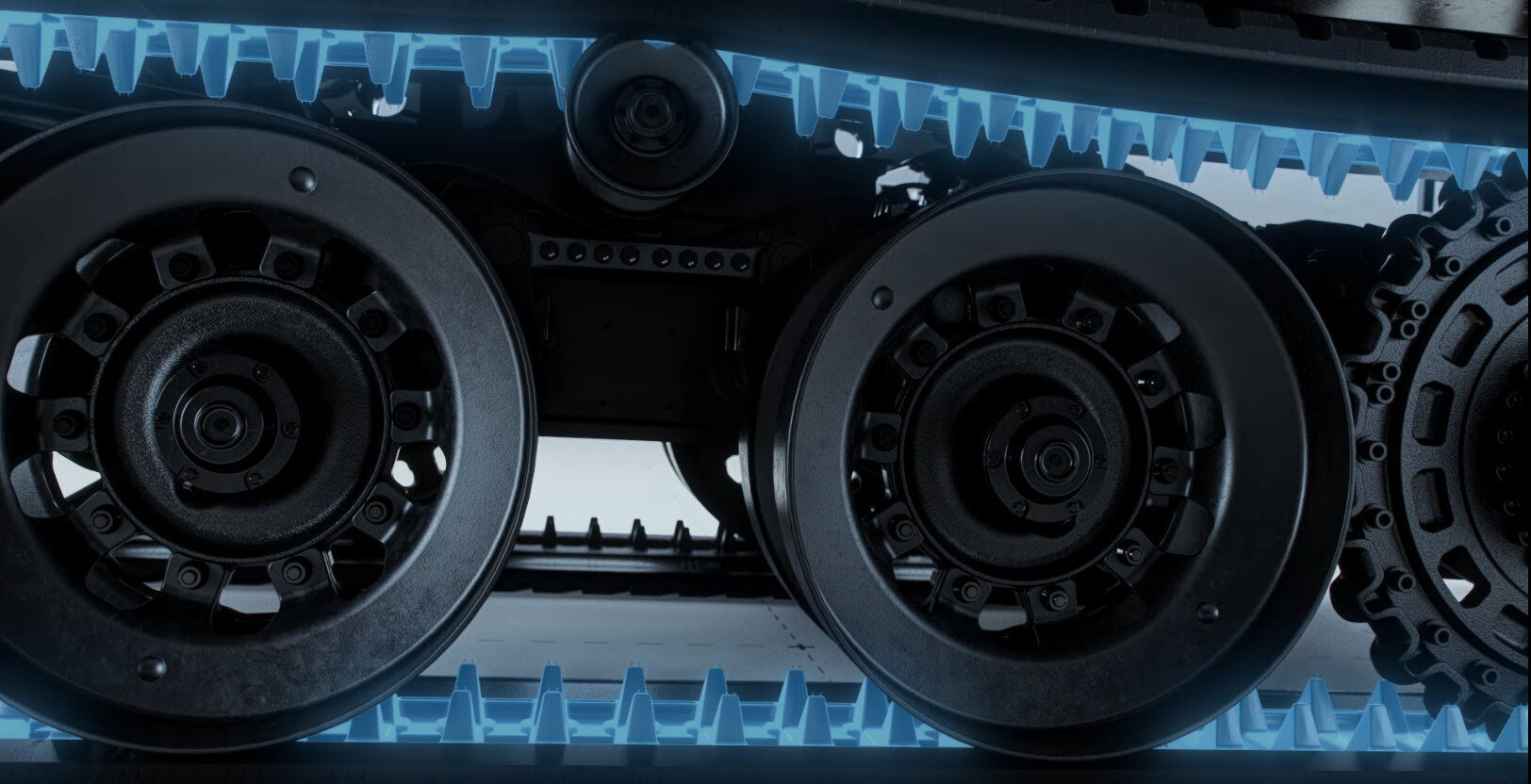

Precision Alignment
Engineered with precise link spacing, Prinoth's track technology delivers track pitch accuracy up to 10 times greater than conventional systems. The result is smooth, consistent sprocket engagement, even load distribution across sprockets and crosslinks, reduced wear, and longer track and undercarriage life.
