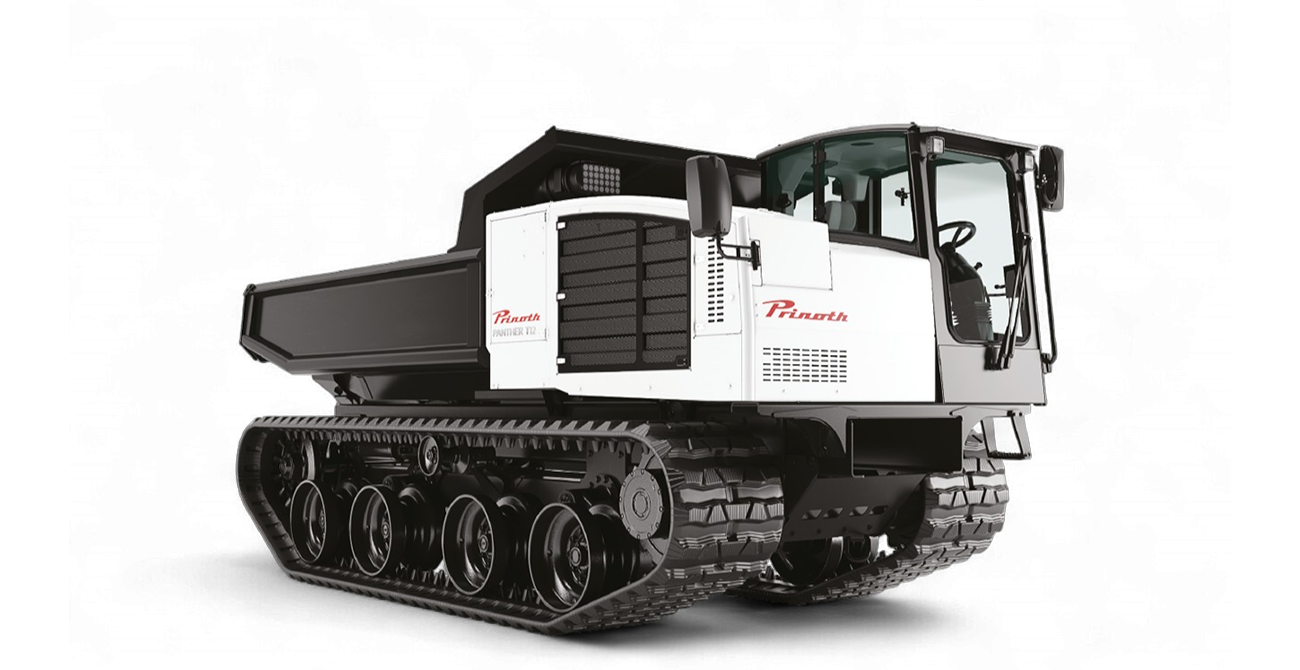

PANTHER T12

Carry heavy loads in variable working conditions.

Share on WhatsApp (App) Share via e-mail

Power

250 HP @ 2200 rpm

186 kW @ 2200 rpm

Payload

25,000 lb

11.340 kg

Heaped Capacity

7.7 yd³

5.9 m³

360° view

Features

Technical Details & Download

Find a dealer

Your Benefits

Get more done

Productivity is key for this model. With a 35% speed increment, Prinoth strives to help its customers do more.

Be More Profitable

Panther Crawler Carriers continually provide unparalleled uptime and performance by virtue of the vehicles’ high quality components.

Made in North America

Prinoth crawler carriers are proudly designed, engineered and manufactured in Canada making them easily accessible to the entire North American market.

WORKING IN REMOTE AND STEEP AREAS

PANTHER T12 DUMPER

The Panther T12 is a reliable, regular-sized crawler carrier designed for remote and steep areas. Its low ground pressure and easy-to-load body make it simple to access and operate in different environments.

With only 6.20 psi (42.75 kPa) ground pressure when fully loaded and a capability to work on slopes of up to 60% (31°) uphill or downhill, this vehicle ensures reliable performance where access is most difficult.

Configuration

Maintain full control of your fleet by monitoring usage, status, and location from anywhere, detect potential issues before they lead to downtime, and ensure smooth operations even in the most remote locations.

Features

Panther models ranging from T6 to T14R fit on regular-sized transport decks which limits owners from having unnecessary special permits and extra costs.

This endless rubber track with embedded steel crosslinks provides optimized performance, traction, side-hill grip, and durability, along with longer track life and higher reliability.

There are no daily maintenance needed with Panther vehicles which results in less downtime. The Prinoth patented-undercarriage has fewer moving parts for less corrosion spots, and the vehicles all have an automatic track tensioner which doesn’t have any greasing points.

Technical data

Download (PDF)

Power

250 HP @ 2200 rpm

186 kW @ 2200 rpm
Payload

25,000 lb

11.340 kg
Heaped Capacity

7.7 yd³

5.9 m³
Travel Speed

8.4 mph

13,5 km/h
Ground pressure

3.50 psi (unloaded)

24,13 kPa (unloaded)
Maximum Gradeability Uphill/Downhill

60%

31,0°
Maximum Gradeability Side hill

40%

21,8°

Length

240.4 in

6.107 mm
Shipping Width

101.2 in

2.570 mm
Height

114.9 in

2.918 mm
Standard Equipment

Air conditioning
ROPS ISO 3471
Inclinometer built in display with adjustable alarms

Air conditioning
ROPS ISO 3471
Inclinometer built in display with adjustable alarms
Optional Equipment

Fleet Management system
FOPS ISO 3449

Fleet Management system
FOPS ISO 3449
