PANTHER T6

PANTHER T6

Small but mighty

Power

Power

147 HP @ 2200 rpm
110 kW @ 2200 rpm
Payload

Payload

12,600 lb
5.715 kg
Heaped Capacity

Heaped Capacity

4.3 yd³
3,2 m³

Your Benefits

Maneuverability in extreme conditions

Maneuverability in extreme conditions

To navigate through difficult terrain, such as uneven grounds, steep slopes, or in muddy conditions, this 6-ton crawler is the right choice.

Tracks that last

Tracks that last

Rubber tracks provide excellent traction and stability, allowing crews to reach areas where other vehicles might struggle to go.

Proud to be the most dependable crawler carriers!

Proud to be the most dependable crawler carriers!

With its robust construction while being built with rugged and durable components, the Panther T6 provides remarkable reliability.

Built for Tough conditions

Winter work is hard on any equipment but the Panther T6 can buck against the worst of environments, even Canadian winters!

Features

Give your operators the maximum comforts to work all day as the Panther T6 comes with a wide spacious cab and air conditioning as a standard. Narrow cab option also available. All cabs come with ROPS certification (standard) and FOPS certification (optional).

1 or 2 p., wide or narrow cab configurations
1 or 2 p., wide or narrow cab configurations
1 or 2 p., wide or narrow cab configurations

The selection of dump body between a dump box or a tilting deck is available. Your choice only depends on the task you need to complete and the nature of the materials you need to handle. We can also customize the dump body to meet your exact needs.

choice of dump body or tilt deck
choice of dump body or tilt deck
choice of dump body or tilt deck

The Panther undercarriage is unique and has a patented design. It is designed with rugged large steel wheels which allow the vehicle to easily adapt to uneven soil, ruts and ditches. The undercarriage is self-cleaning and the tracks adapt to all soil types and to all weather conditions. The Automatic track tensioning system eases track care.

Fewer moving parts result in less corrosion
Fewer moving parts result in less corrosion

Companies who need to provide equipment training in the field can benefit from adding a trainer seat to their Panther to allow the presence of an seasoned operator/instructor onsite. This is particularly useful for novice operators learning to operate the equipment safely and efficiently. The trainer seat can also allow you to bring extra crew to remote projects sites.

Trainer seat option

Technical data

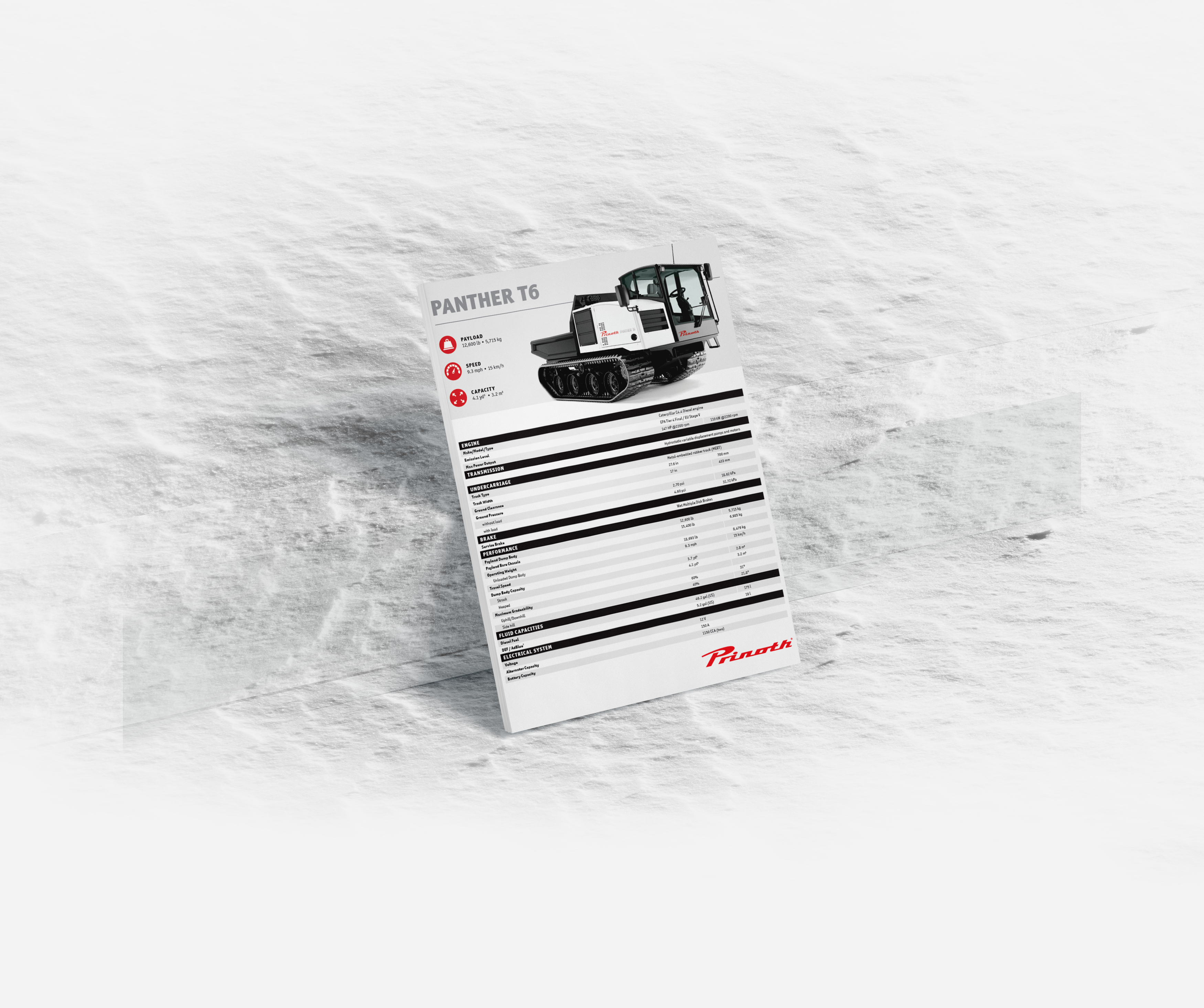

Download (PDF)
  • Power

    147 HP @ 2200 rpm
    110 kW @ 2200 rpm
  • Payload

    12,600 lb
    5.715 kg
  • Heaped Capacity

    4.3 yd³
    3,2 m³
  • Travel Speed

    9.3 mph
    15 km/h
  • Ground pressure

    2.7 psi (unloaded)
    18,62 kPa (unloaded)
  • Maximum Gradeability Uphill/Downhill

    60%
    31,0°
  • Maximum Gradeability Side hill

    40%
    21,8°
  • Fording depth

    39 in
    1.000 mm
  • Shipping Width

    95 in
    2.413 mm
  • Standard Equipment

    Air conditioning
    ROPS ISO 3471
    Inclinometer built in display with adjustable alarms
    Air conditioning
    ROPS ISO 3471
    Inclinometer built in display with adjustable alarms
  • Optional Equipment

    Fleet Management system
    FOPS ISO 3449
    Fleet Management system
    FOPS ISO 3449

Working in extreme conditions
