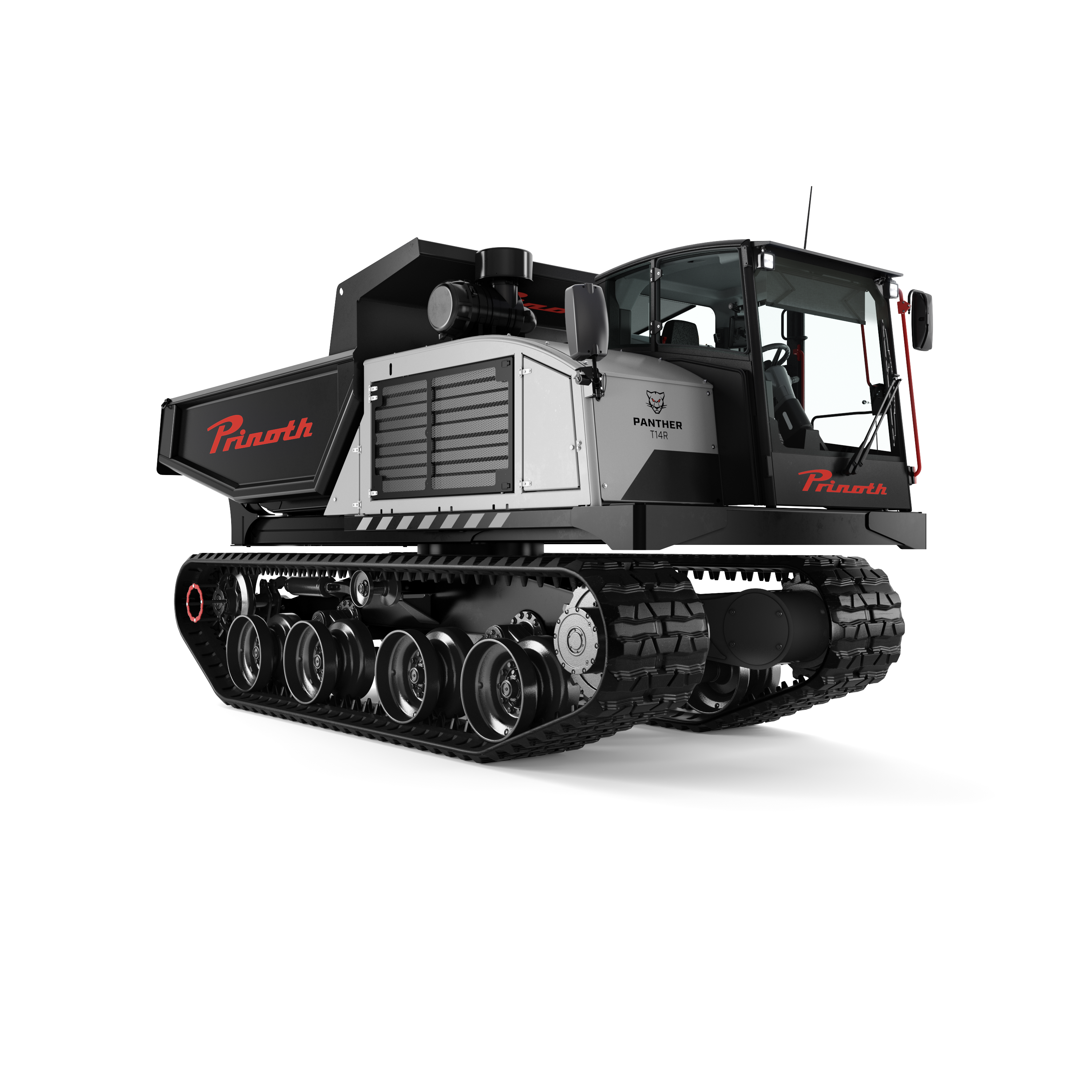

PANTHER T14R

PANTHER T14R

Payload

product.detail.Payload

29,100 lb
13.200 kg
Heaped Capacity

product.detail.Heaped Capacity

8.5 yd³
6.5 m³
Speed

product.detail.Speed

8.4 mph
13.5 km/h
PANTHER T14R
配置

360度全景

技术数据 & 下载

 查找经销商

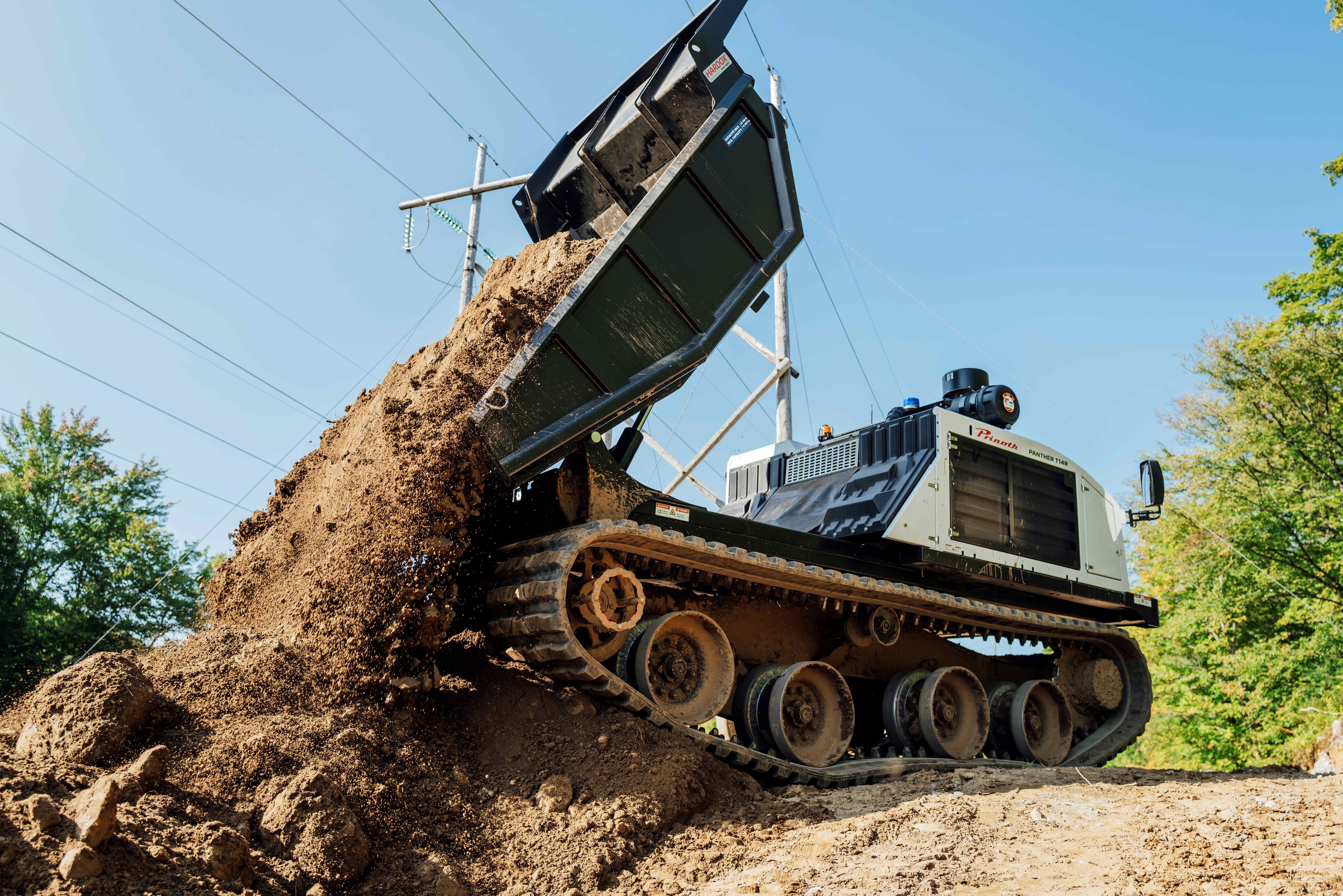

No backing up needed. The Panther T14R powers through rough terrain with 14-ton capacity, 360° dump body, and low ground pressure

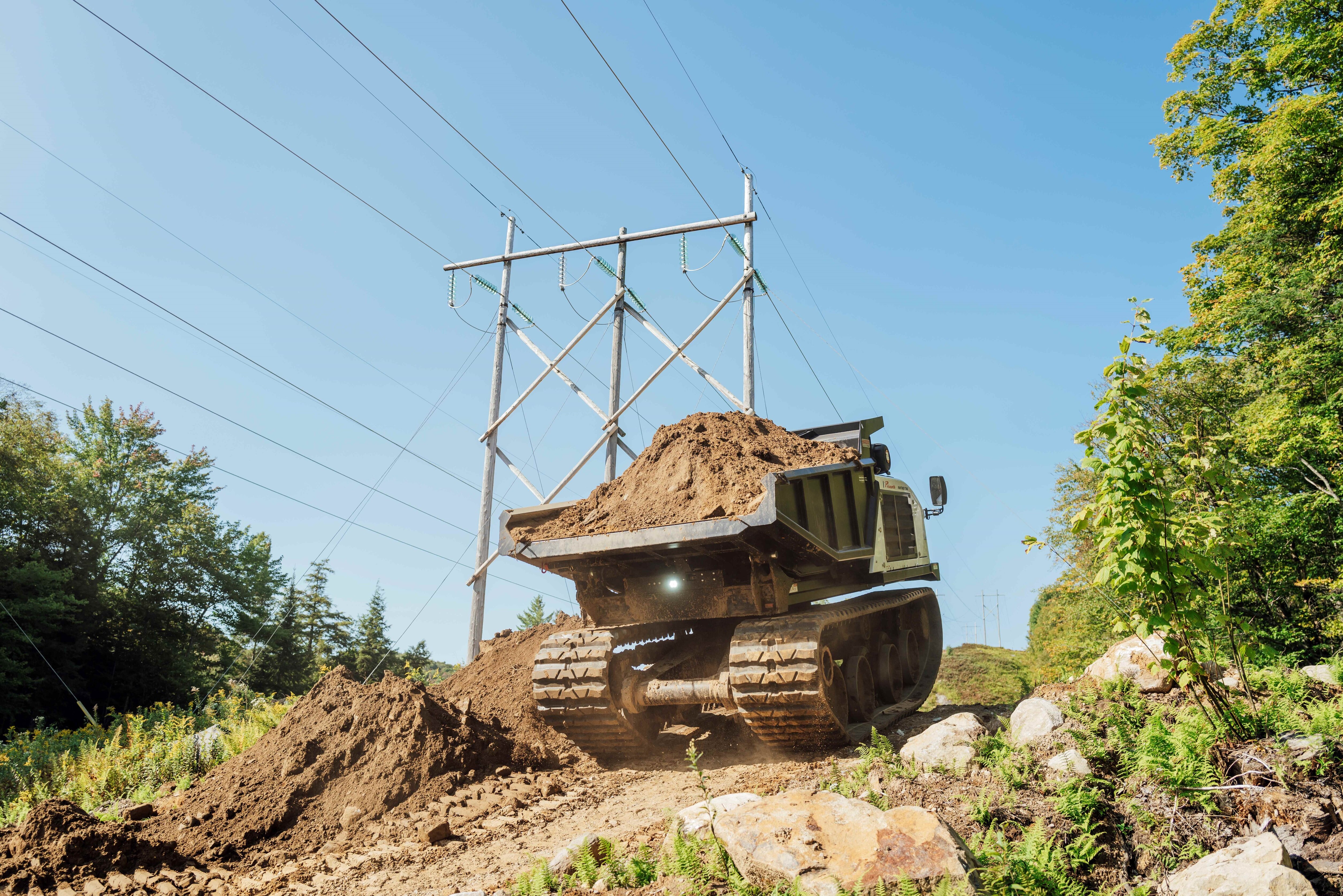

When weather shifts or job site conditions turn tough, the Panther T14R keeps moving. Built for speed, power, and reliability across any terrain, it tackles mud, marsh, and soft soil with ease. Boosting productivity even in the most demanding environments.
For construction professionals seeking a machine that boosts productivity, prioritizes safety, and can handle rough terrain on construction sites. The T14r delivers faster cycles, safer operators, and maximum efficiency on every haul.

配置

特征

技术数据

  • product.detail.Payload

    29,100 lb
    13.200 kg

  • product.detail.Heaped Capacity

    8.5 yd³
    6.5 m³

  • product.detail.Speed

    8.4 mph
    13.5 km/h

  • 功率

    275 HP @ 2200 rpm
    205 kW @ 2200 rpm

  • product.detail.Ground pressure

    3.90 psiproduct.detail. GP_T14R_RD
    26,9 kPaproduct.detail. GP_T14R_RD

  • product.detail.Maximum Gradeability Uphill/Downhill

    33%
    15°

  • product.detail.Maximum Gradeability Side hill

    33%
    15°

  • product.detail.Weight

    36,663 lb
    16,630 kg

  • product.detail.Length

    233.7 in
    5,936 mm

  • product.detail.Shipping Width

    101.2 in
    2,570 mm

  • product.detail.Height

    125 in
    3,175 mm

  • product.detail.Fording depth

    47.2 in
    1,200 mm

  • product.detail.Standard Equipment

    product.detail.SE_T14R_RD
    product.detail.SE_T14R_RD

  • product.detail.Optional Equipment

    product.detail.OE_T14R_RD
    product.detail.OE_T14R_RD
