Zero Site Damage with Prinoth T14r

Eight years of field experience in Ontario’s most challenging environments demonstrates how the Prinoth Panther T14r rotating crawler carrier fundamentally changes project economics and environmental impact across construction, conservation and infrastructure applications. CG Equipment’s extensive customer deployments reveal transformative capabilities that conventional wheeled vehicles cannot match.

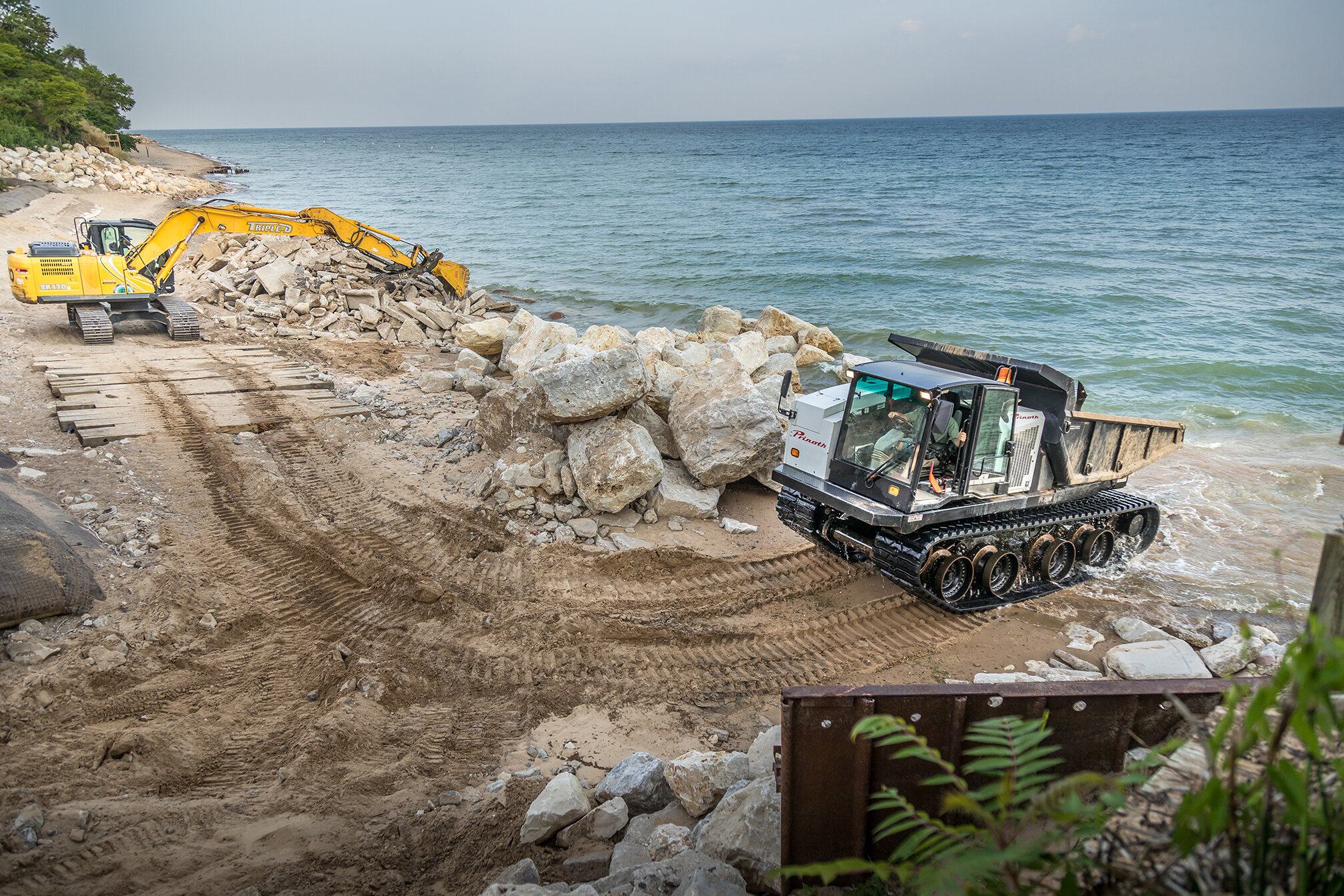

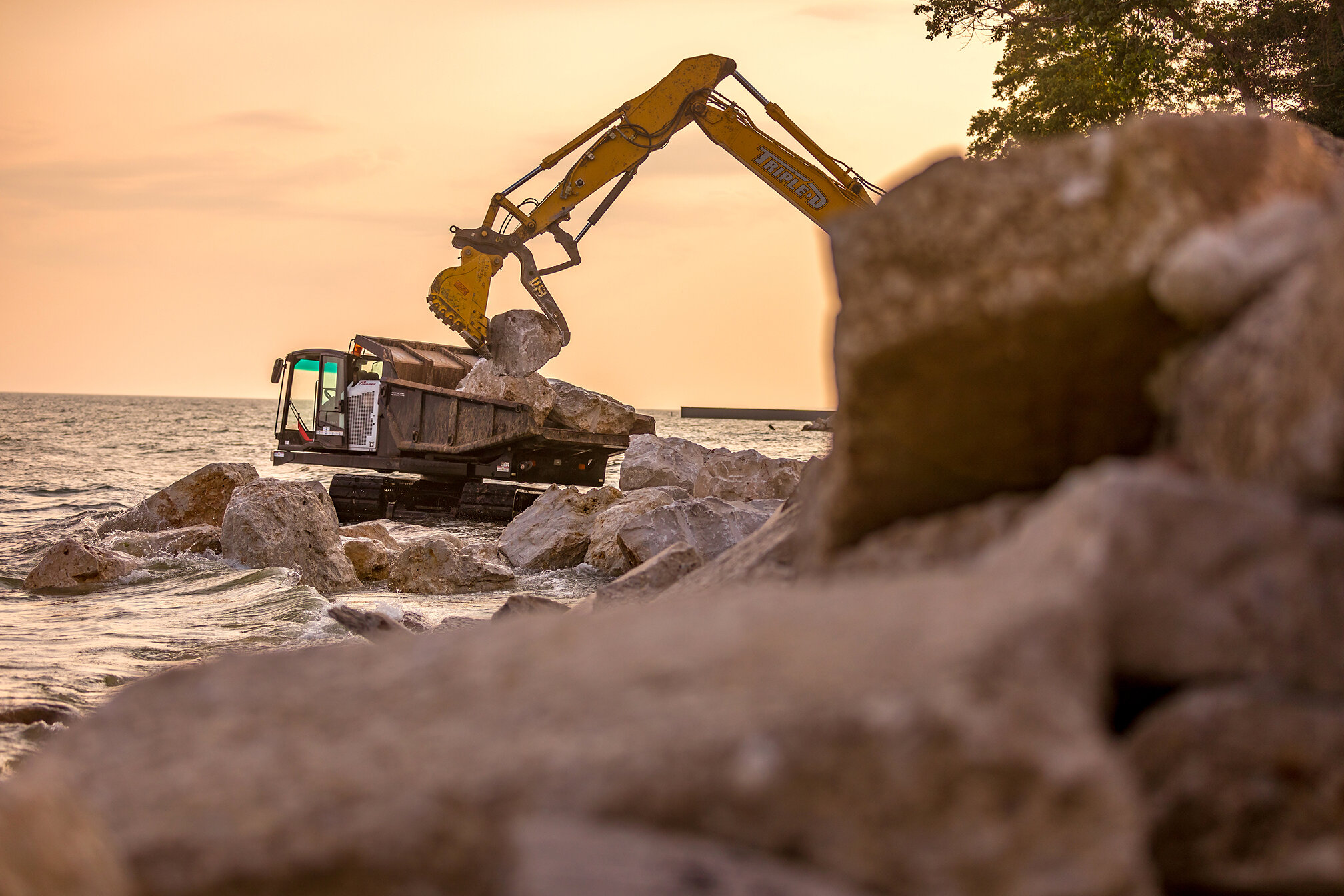

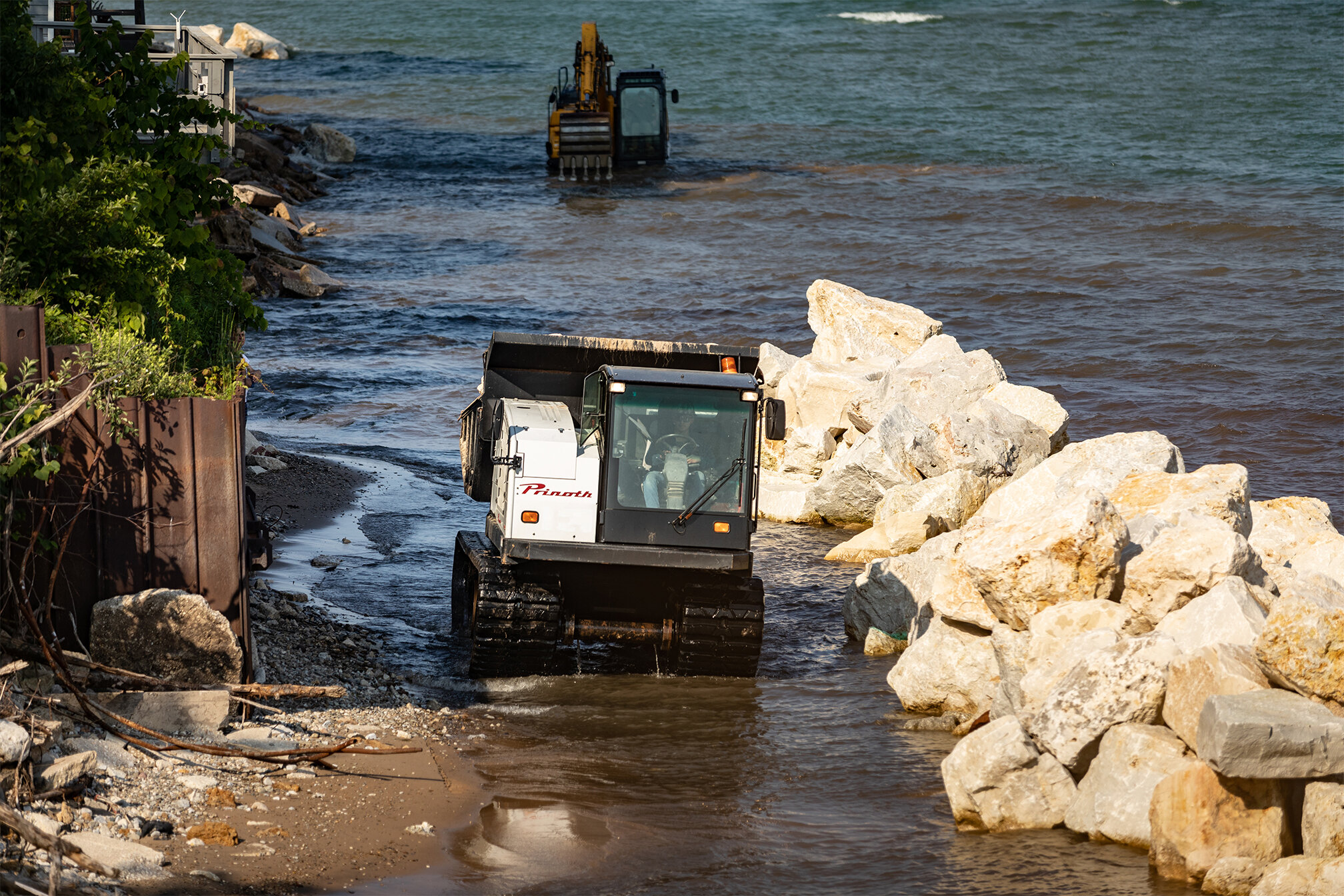

Shoreline restoration along Lake Erie exemplifies the T14r’s environmental and economic advantages. Where traditional dump trucks routinely bog down in sandy beaches and create ruts requiring constant maintenance and expensive remediation, the T14r operates continuously without site damage. Its remarkably low 3 psi ground pressure, significantly less than a human footprint’s 10 psi, eliminates rutting that would otherwise require periodic smoothing during operations and costly restoration at project completion. The rotating dump body further optimizes workflow by eliminating vehicle repositioning between loading and dumping cycles, dramatically increasing productivity in confined shoreline work areas.

Environmental conservation organizations have embraced the T14r for wetland habitat management projects where ecological preservation remains paramount. A national conservation organization working across Ontario repeatedly selects Panthers for sensitive site operations, benefiting from the machine’s minimal ground disturbance that reduces both remediation costs and environmental recovery time. The automatic track tensioning system proves particularly valuable in muddy wetland conditions, with independent tensioners on each track preventing derailment and maintaining consistent operation where material accumulation would otherwise cause continuous tension variations.

The T14r’s technical capabilities shine in extreme applications like northern Ontario dam construction. One contractor faced an seemingly impossible challenge: hauling materials along narrow dam crests without turning room. The T14r’s 360-degree rotating upper carriage solved this by allowing operators to drive forward, rotate 180 degrees while the undercarriage remained stationary, dump the load, then use Prinoth’s single-touch direction reset to maintain forward-facing orientation for the return trip. This safety feature prevents operator disorientation that could lead to control errors on precarious dam structures.

Performance specifications support these demanding applications. The CAT C7.1 engine delivers 275 HP, hauling maximum payloads of 29,100 pounds at speeds reaching 8.4 mph. Maximum gradeability of 33% enables safe operation on slopes where conventional vehicles cannot function. Advanced telematics systems allow remote monitoring of vehicle health, predictive maintenance scheduling and utilization tracking, maximizing uptime for these high-value assets.

Prinoth continues expanding the platform with the upcoming T9r model, bringing rotating capabilities to a smaller 17,637-pound payload capacity machine. Both models feature purpose-built undercarriages with self-cleaning designs, large steel wheels and high-travel suspension that maintains stability across extremely uneven terrain while preventing debris accumulation.
